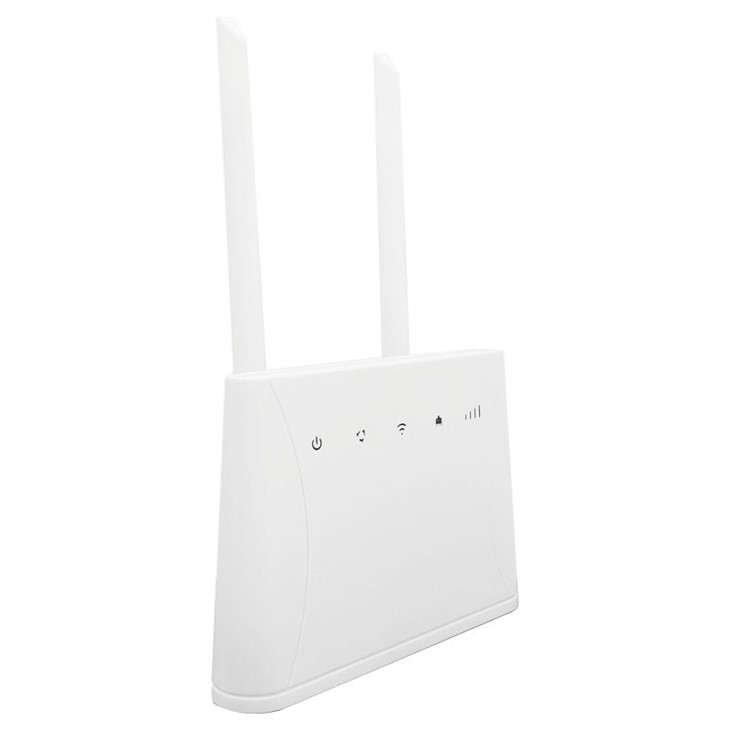

4G CPE WiFi Router Tsev WiFi Hotspot

Khoom npe	4G Enterprise wireless
Module	EC-200T4G
DDR	64 MB
Zaus band	2.4GHz ceev
Daim npav qhov	25 * 15mm
Daim ntawv pov thawj	FCC, ce, RoHS

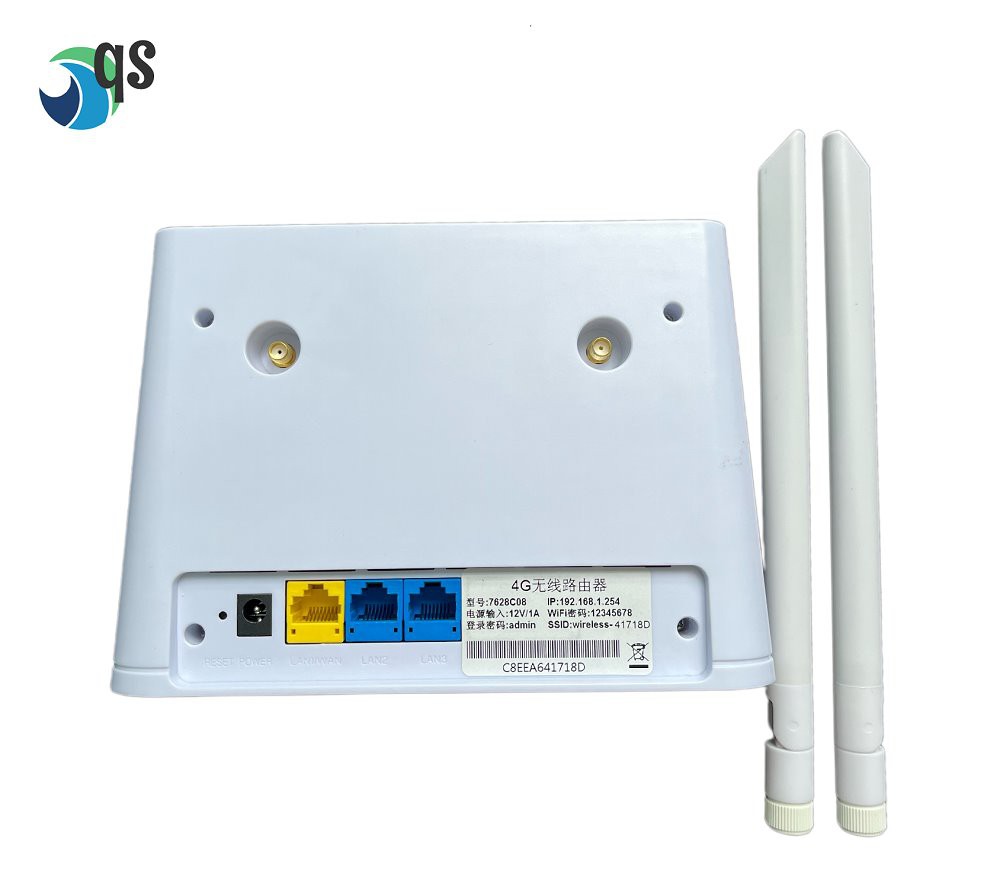

7628c08 4G router (1)

Txais software muaj nuj nqi lossis configuration interface customization.

7628c08 yog CAT6, 300Mbps, high-speed, high-performance 4G wireless router.It with proprietary thiab ruaj khov openwrt system muab ob 100M Ethernet LANs thiab ib qho 100M Ethernet WAN chaw nres nkoj.

uas tuaj yeem muab cov neeg siv nrog wireless ntev-ntev loj cov ntaub ntawv kis tau tus mob los ntawm kev tso ncaj qha 4G SIM daim npav.Can txuas 32 ntxiv rau Ethernet li thiab WiFi khoom siv tib lub sijhawm.

Cov khoom siv tau dav siv hauv tsev / kev saib xyuas kev ruaj ntseg, kev ruaj ntseg xyuas kev lag luam wireless broadband, aquaculture broadband nkag, nyiaj txiag, kev thauj mus los, thiab lwm yam lag luam.

7628c08 4G router (1)

Specification:

1) Plug thiab ua si daim npav, daws qhov teeb meem hauv internet.

2) Muab 1 * 10/100M WAN ntxiv rau 2 * 10/100M LAN ntxiv rau 1 SIM daim npav.

3) 300Mbps kev kub ceev Ua raws li EEE802.11b/g/n raws tu qauv.

4) 4G rau wifi, 4G rau wired network.

5) WDT watchdog tsim kom muaj kev ruaj ntseg.

6) Txhawb Uboot txhuam.

7) Ua tiav kev tiv thaiv kev poob qis kom ntseeg tau tias cov ntaub ntawv davhlau ya nyob twg yog nyob online.

8) Txhawb 64/128 ntsis WEP encryption, WPA/WPA2, SPA-PSK/WPA2-PSK thiab lwm yam kev encryption thiab kev ruaj ntseg mechanism.

9) Lub wireless standby tooj yog 30, HD video yog 4 ~ 5, wired yog hais txog 64.

10) Txhawb VPDN, APN ntiag tug network nkag; Txhawb IPSec, GRE, ipip, PPTP, L2TP, OpenVPN, n2n thiab lwm yam haujlwm VPN.

11) Nws tuaj yeem siv tau yooj yim rau kev saib xyuas kev sib kis, 4K ntse TV, HD yeeb yaj kiab ua si, video online, 3D games, thiab lwm yam.

router software.

router software

Kho vajtse nta
Chipset	MT7628 NPE
FLASH	SPI 8 MB
RAM	DDR{0}}MB
raws tu qauv	IEEE 802.11n/802.11g/802.11b/g/n 802.3/802.3u
Hloov Hwj chim	802.11g 6Mbps (-25@EVM) MCS 7 18.0 ± 2.0dBm 802.11g 54Mbps ({ {11}}@EVM) MCS 7 17.0 ± 2.0dBm 802.11n HT20 (-30@EVM ) MCS 7 15.0 ± 2.0dBm 802.11n HT40 (-30@EVM) MCS 7 15.0 ± 2.0dBm
Txais Tos Txais	802.11b 11Mbps Tsawg dua lossis sib npaug rau -90dBm 802.11g 6Mbps Tsawg dua lossis sib npaug rau -88dBm 802.11g 54Mbps Tsawg dua lossis sib npaug rau -68dBm 802.11n HT20 Less dua lossis MCS sib npaug rau -66dBm 802.11n HT40 MCS 7 Tsawg dua lossis sib npaug rau -65dBm
Wireless ceev	Max 300 Mbps
Ua hauj lwm zaus	2.4GHz xaiv: 1-13
Antenna Hom	2 * built-in 5dBi 2.4GHz kav hlau txais xov 2 * detachable 5dBi 4G kav hlau txais xov
Interface	1 * 10 / 100M WAN Chaw nres nkoj 2 * 10 / 100M LAN Port1 * SIM daim npav qhov
LED	Fais fab, SYS, 2.4G, WAN, 4G teeb liab qhia
Fais fab mov	DC 12V / 1A
Max siv zog	<>
Qhov Loj (L * H * W)	200 × 145 × 45mm
Qhov hnyav tag nrho	0.5Kg
Ua haujlwm ib puag ncig	Kev Ua Haujlwm Kub: 0 degree ~ 40 degree (32 degree F ~ 104 degree F) Cia Kub: -30 degree ~ 70 degree (-40 degree F ~ 158 degree F) Ua haujlwm av noo: 10 feem pua ~ 90 feem pua tsis-condensing Cia Humidity: 5 feem pua ~ 90 feem pua tsis-condensing

Software
Default Setting	IP Chaw Nyob: 192.168.1.254 Tus Neeg Siv / Tus password: admin/admin
WAN hom	PPPoE / Dynamic IP / Static IP / 3G / UMTS / 4G / LTE, dhcp -4 / 5G
Hom kev ua haujlwm	AP; Router
Qhov system	Txhawb SDK, OpenWRT, eCos
DDNS	Txhawb nqa
WEB Style Hloov	Txhawb nqa
Band Ctrl	Txhawb nqa
Static Router	Txhawb nqa
System Log	Txhawb nqa
DHCP server	DHCP neeg rau zaub mov Client List; Static address assignment;
VPN Pass-through	MVPN/IPsec/OpenVPN/PPTP/L2TP/GRE/N2N
Lwm Txoj Haujlwm	Mac clone NTP Synchronize Web firmware upgrade
Networking qhov tseem ceeb	4G qhov tseem ceeb (Y / N)

factory

certificate

HAIS TXOG SHIPPING

1 .Kev xa khoom thoob ntiaj teb yuav zoo.

2 .Peb lub sijhawm khoom xa tuaj yog 3-15hnub tab sis lub sijhawm raug yog raws li koj qhov ntau thiab cov khoom xav tau.

3 .Peb tuaj yeem xa los ntawm hiav txwv, los ntawm huab cua, ob qho tib si zoo.

4 .FOB .CRF, CIF txhua tus yuav raug lees txais.

5 . Ua ntej xa khoom, txhua yam khoom yuav raug tshuaj xyuas los ntawm peb lub Hoobkas Q .C, thiab ua kom zoo tshaj plaws kom ntseeg tau tias txhua yam khoom yuav zoo ua ntej xa khoom.

Txhua lo lus nug, thov xa email lossis hu rau lub xov tooj ntawm tes kom teb tau thov!

Email: info@qs-wifi.com

Whatsapp: ntxiv 0086134161548

Cim npe nrov: 4g cpe wifi router tsev wifi hotspot, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, luv nqi, pheej yig, ua nyob rau hauv Suav teb
