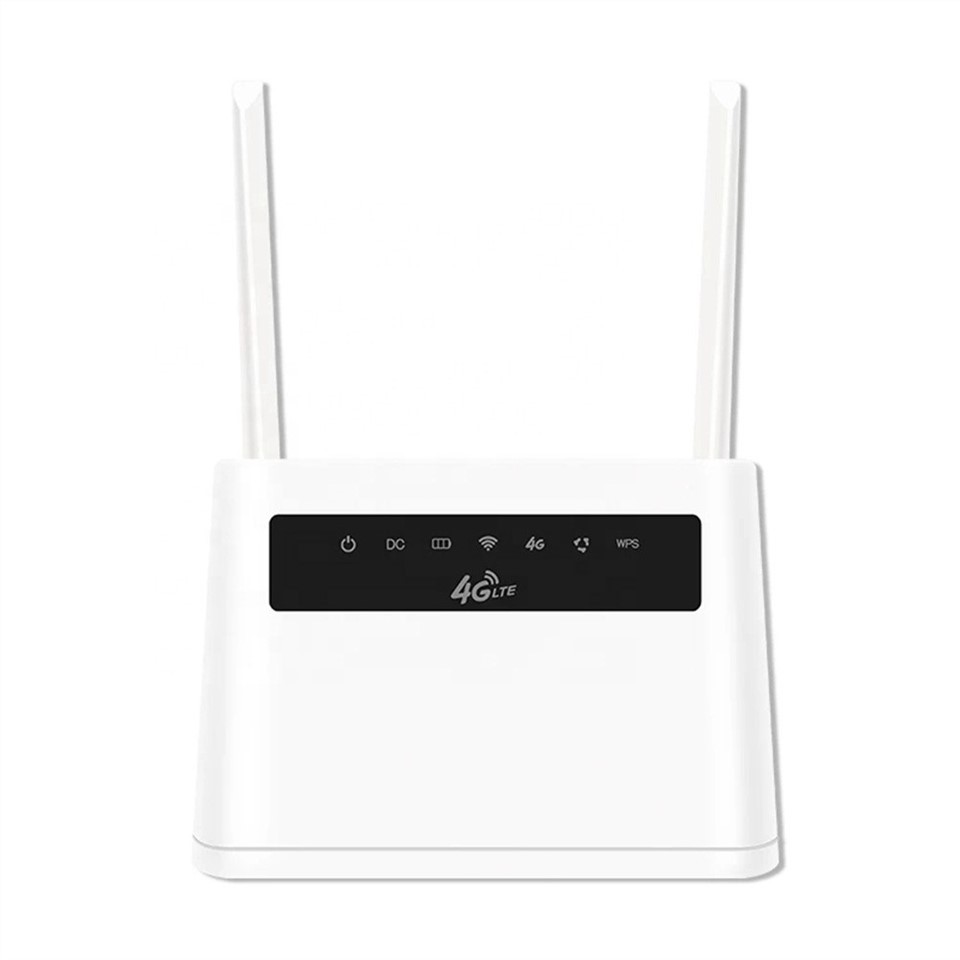

300Mbps Universal 4G LTE Router

Lus Taw Qhia:

Nws yog CAT 4 4G WiFi router kis ceev mus txog 300Mbps, 4G ceev mus txog 150Mbps, TDD-LTE: 150Mbps DL / 50Mbps UL TD-SCDMA: 2.8Mbps DL / 2.2Mbps UL . Lub davhlau ya nyob twg tuaj yeem txhawb nqa peb hom kev sib txuas lus: TDD FDD, WCDMA. Nws txhawb kev nkag mus rau Is Taws Nem / PPPoE hom kev ua haujlwm, siv 4G SIM daim npav, tuaj yeem txuas rau modem ua haujlwm li Gateway hom, nruab nrog 4 LAN interface, tuaj yeem txuas rau lwm yam khoom siv ib txhij. Nws yog ib qho yooj yim mus txuas thiab nqa tau yooj yim hauv tes Qhia cov neeg siv khoom rau 32 tus neeg siv WiFi, tsuas yog ntxig rau SIM daim npav, ces tuaj yeem txaus siab rau WiFi nrog lub portable 4G LTE router.

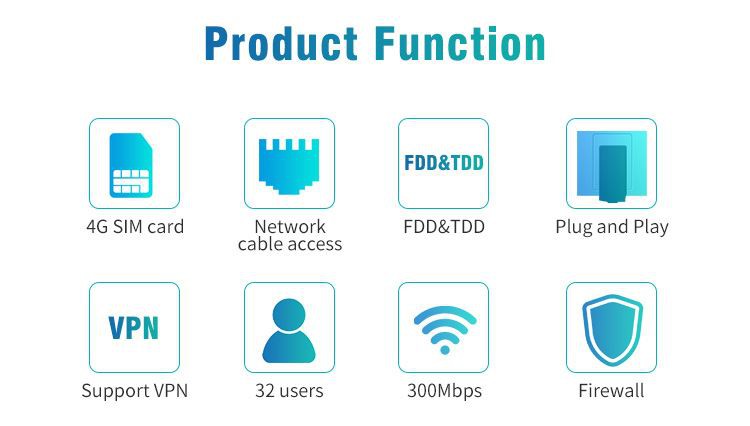

Lub ntsiab nta:

-- LTE CAT4 mus txog 300Mbps

-- Mus txog 32 Wi-Fiaccesses tib lub sijhawm.

-- Kev siv hluav taws xob tsawg

-- Tsis muaj broadband, kuj tseem muaj lub network, thiab tus qauv SIM tuaj yeem tso tau.

-- 5 network cable interface, WAN interface ntxiv rau LAN interface

-- Me me thiab yooj yim nqa.

Fais fab mov: DC 12V / 1A

RJ45 Chaw nres nkoj: 5x RJ-45 chaw nres nkoj (10BaseT / 100BaseTX nrog Auto-MDIX IEEE 802.3 / 802.3u) rau WAN / LAN Auto

LED qhov taw qhia:

1 Lub zog ntsuas

2 System qhov taw qhia

3 Modem qhia: 3G nrog xiav, 4G nrog ntsuab.

4 WIFI qhia

5 WAN/LAN qhia

SIM daim npav: Txhawb Micro SIM daim npav

Kav hlau txais xov: Sab nraud: 1x 5dbi Wifi Kav hlau txais xov; 1 x 5dbi 4g kav hlau txais xov

Kev ncua deb: Sab hauv tsev 10-30 meters kom deb li deb;

Sab nraum zoov txog li 10-50 meters (vim qhov chaw sib txawv)

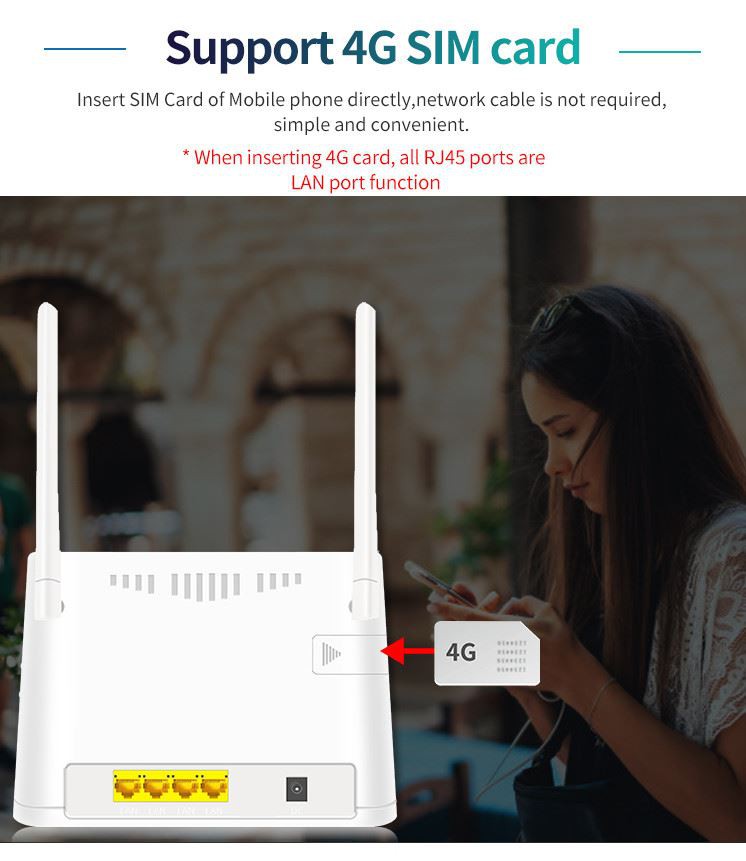

Txhawb 4G SIM daim npav

Ntxig SIM daim npav ntawm lub xov tooj ntawm tes ncaj qha, network cable tsis tas yuav tsum tau, yooj yim thiab yooj yim.

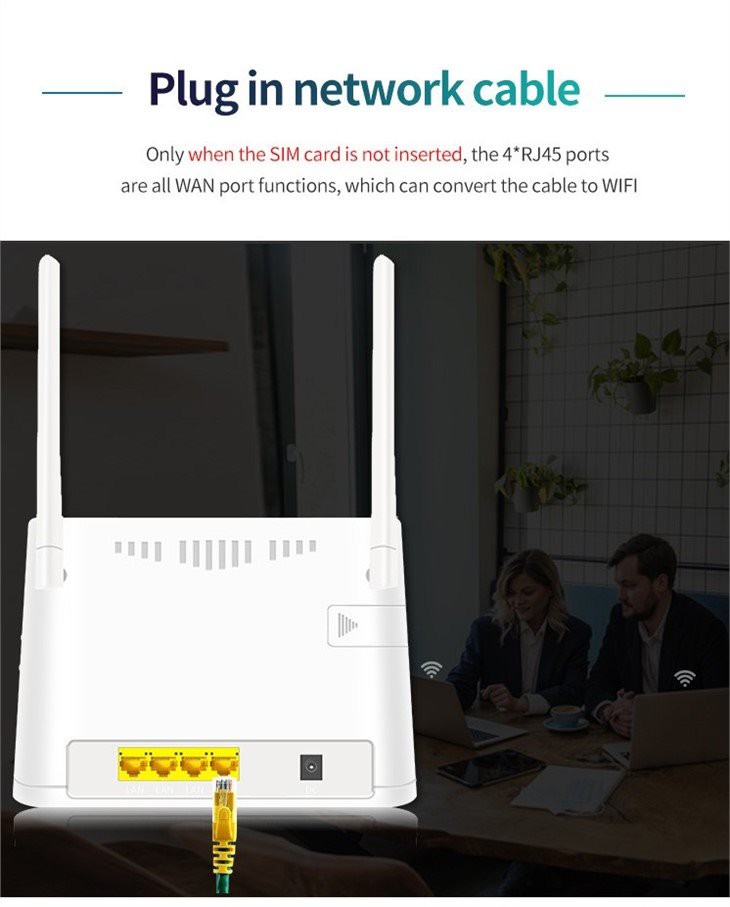

Txuas lub network cable

Nws muaj 1WAN thiab 4 x LAN chaw nres nkoj, txhawb nqa lub network cable ntsaws rau hauv, nws yog qhov ntsuas kub thiab yooj yim rau cov neeg siv khoom lag luam / tsev.

Txhawb Lub Suab Hu

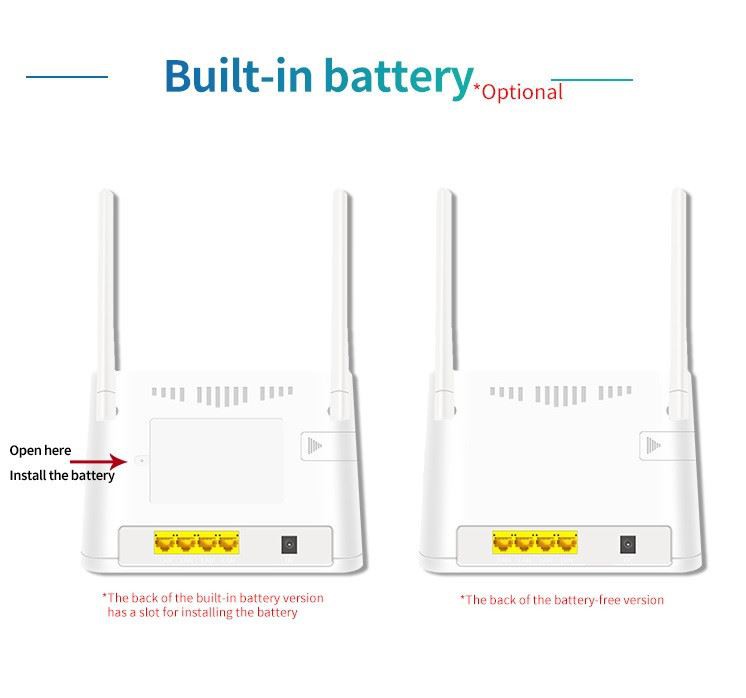

Roj teeb yeem

Ua -hauv 5000 mAh roj teeb. Raws li kev siv ib txwm, lub roj teeb tuaj yeem kav ntev dua 6 teev. Yog tias tsis muaj hluav taws xob, nws tuaj yeem mus online.

Zaus Band:

Version 1 (2 antennas sab nraud)

4G / LTE: B1 / B3 / B5 / B7 / B8 / B20

4G/TDD: B38/B39/B40/B41

3G / WCDMA: B1 / B8

(muaj feem xyuam rau Tebchaws Europe, Africa, Asia, txhua lub tebchaws thiab cheeb tsam, xws li Russia, Israel, Kaus Lim Qab Teb, Spain, Brazil, Ukraine, Fabkis, Ltalis, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, thiab lwm yam)

Version 2 (Ua-hauv antennas)

4G / LTE: B2 / B4 / B5 / B12 / B17

3G / WCDMA: B1 / B4 / B5

(tseem siv tau rau cov tebchaws thiab cheeb tsam hauv North America, South America, Central America, xws li Tebchaws Meskas, Chile, Mexico, Colombia, thiab lwm yam)

Version 3 (2 antennas sab nraud)

4G / LTE: B2 / B4 / B5 / B12 / B17

3G / WCDMA: B1 / B4 / B5

(tseem siv tau rau cov tebchaws thiab cheeb tsam hauv North America, South America, Central America, xws li Tebchaws Meskas, Chile, Mexico, Colombia, thiab lwm yam)

3G WCDMA: B1 / B8 2100MHZ / 900MHz

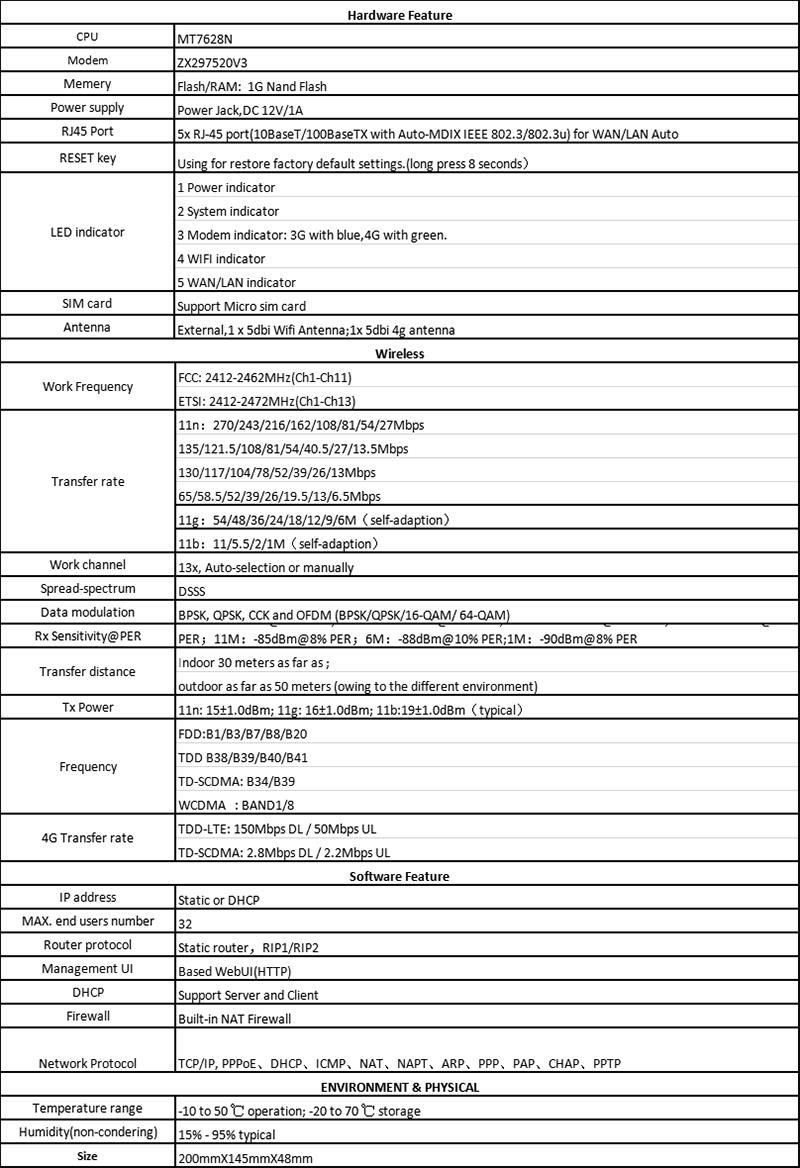

Hardware nta:

300mbps kev kub ceev

Ob leeg 4g thiab WiFi ceev ceev thiab txhawb kev saib video thiab ua si yam tsis nres.

Omnidirectional kev pab them nqi

360-degree omnidirectional WiFi kev pab them nqi kom tau raws li ntau yam kev xav tau.

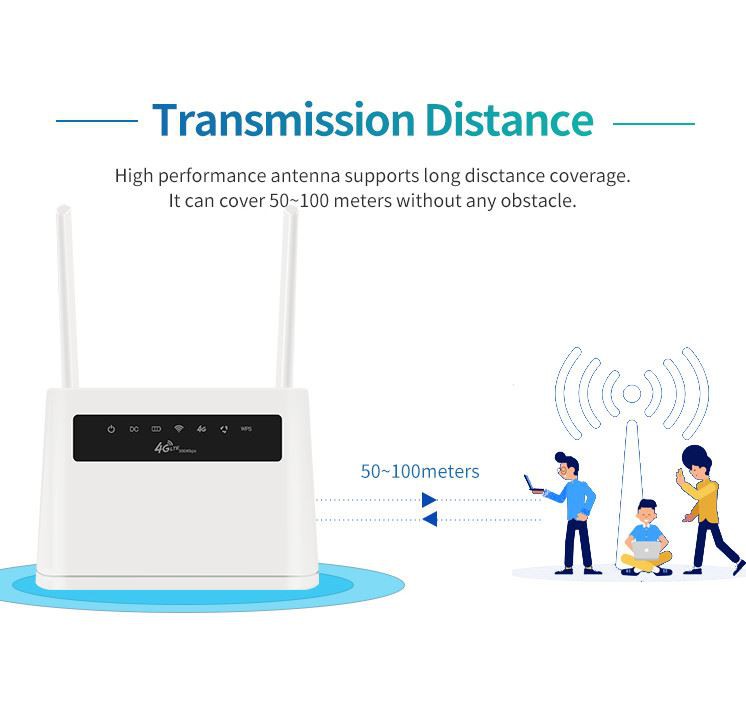

Kev sib kis nrug

Kev ua haujlwm siab kav hlau txais xov txhawb kev pab cuam ntev, nws tuaj yeem npog 50-200 meters yam tsis muaj teeb meem.

32 Cov neeg siv

Nws tuaj yeem txhawb nqa txog 32 tus neeg siv, nws tsim nyog rau kev sib tham, kev lag luam, tsev ect.

Muaj feem xyuam: chav ua lag luam, kev ua si hauv khw, hauv tsev WiFi.

Plug Hom:

US Plug, nws siv rau Canada, Is Nrias teb, Nyiv, Mexico, Thaib, Tebchaws Meskas, Philippines thiab lwm yam.

EU Plug, nws siv rau Indonesia, Lub Tebchaws Yelemees, Fabkis, Spain, Ltalis thiab lwm yam.

FAQ:

Q1. Kuv tsis pom kuv tus qauv xav tau hauv nplooj ntawv no.

Nyob zoo cov phooj ywg, ecatalog yuav xa email rau koj asap thaum koj hu rau peb. Tsis tas li, peb muab kev pabcuam customization. Yog li, tiv tauj peb!

Q2. Kuv tuaj yeem kho kuv qhov kev txiav txim?

Yog lawm, OEM / ODM kev pabcuam muaj. Customized logo / pob / xim. Yog xav paub meej, Thov hu rau cov neeg muag khoom zoo.

Q3. Kuv puas tuaj yeem nug cov qauv ua ntej muab xaj?

Yog lawm, peb txais tos cov qauv txiav txim los kuaj thiab xyuas qhov zoo. Cov qauv sib xyaw ua ke tau txais.

Q4. Koj lub tuam txhab ua li cas txog kev tswj kom zoo?

Peb pab pawg QC yuav ua qhov kev soj ntsuam nruj nruj ua ntej xa zaub mov kom paub tseeb tias qhov zoo tshaj plaws.

Q5. Koj cov nqe lus them nqi yog dab tsi?

Rau cov qauv: PayPal, West Union; rau kev txiav txim loj: T / T lossis lwm cov nqe lus sib tham.

Txhua lo lus nug, thov xa email lossis hu rau lub xov tooj ntawm tes kom teb tau thov!
