Sab nraum zoov 4G LTE CPE ODU Wireless Router
POE Fais fab mov
Ua-hauv 5dBi kav hlau txais xov, npog lub vojvoog ntawm 50-100 meters.
SIM daim npav qhov thiab Wan interface
Waterproof, plua plav- pov thawj, tiv thaiv xob laim, Kub thiab kub tsis kam.
Xa kev nug
Product Details ofSab nraum zoov 4G LTE CPE ODU Wireless Router
Nws yog 4G sab nraum zoov WIFI CPE uas siv pej xeem 3G/4G tes hauj lwm los muab cov neeg siv wireless ntev -cov ntaub ntawv kis tau tus mob. Cov khoom yog nrog POE lub zog thiab tsis muaj dej, dav siv rau kev daws sab nraum zoov.
Khoom Feature
Txhawb 802.3/802.11u raws tu qauv, 5 10/100Mbps Auto MDI/MDIX
Txhawb 3G / 4G
Txhawb watchdog feature
Muaj ntau txoj hauv kev los tiv thaiv koj cov ntaub ntawv xa mus
Khoom npe | siab zog wifi router sab nraum zoov 4g lte cpe |
Lub teb chaws siv | (North America ntawm T, Australia / New Zealand / Taiwan / Brazil / Europe / Middle East / Africa / Kauslim / Thaib) |
3G4G band (4G band tuaj yeem xaiv los ntawm koj tus kheej, thiab kev muag khoom tuaj yeem nug) | LTE FDD: B1 (2100MHz), B3 (1800MHz) / B5 (850MHZ) / B8 (900MHZ) B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3 / B8 |
Muaj nuj nqi | Txhawb 3g4g ncaj SIM daim npav, VPN / APN, QoS, thiab lwm yam |
Feem ntau siv tau rau Tebchaws Europe, Asia, Southeast Asia Australia Africa Middle East thiab qee lub tebchaws South America ntau lub tebchaws.
Hardware Specification
Chipset: MT7628NN
Nco: 512Mb DDR2 SDRAM
4G module: Embedded
Zaus: FDD:B1/3/5/7/8/20 TDD:B38/40/41 WCDMA: B1/5/8
Ceev (CAT4)Max: FDD - LTE Downlink: 150Mbps, Uplink: 50Mbps TDD-LTE: Downlink: 150Mbps, Uplink: 50Mbps HSPA ntxiv rau: 42Mbps (download ceev) 5.76Mbps (upload ceev) HSU 5.76Mbps (upload ceev) / HSDPA: 7.2Mbps (download ceev) UMTS: 384Kbps (download ceev / upload ceev)
WIFI: IEEE 802.11b/g/n WPA-PSK/WPA2-PSK Mixed hom mus txog 300Mbps Wi-Fi AP, Txhawb txog 32 tus neeg siv
Chav tsev sab nraum zoov | |
Ceev (CAT4) Max | FDD - LTE Downlink: 150Mbps, Uplink: 50Mbps |
Chipset | MT7628 NPE |
Nco | 512 Mb DDR2 SDRAM |
VPN | Txhawb L2TP |
Lan | 1 x 10/100 Mbps Ethernet chaw nres nkoj (RJ45), |
Qhov taw qhia | "Power", "Sim", "ETH", "Khiav" thiab "Signal" |
Kav hlau txais xov | Cellular: siab nce Internal 5DBi |
SIM/UIM | Standard 3V / 1.8V neeg siv daim npav interface, 15KV ESD tiv thaiv |
Hwj chim | POE, los ntawm RJ45 chaw nres nkoj |
Rov pib dua | Restore lub router rau nws lub Hoobkas qub chaw teeb tsa |
Ua haujlwm kub | -3060 degree |
Cov av noo | Tsawg dua lossis sib npaug li 95 feem pua |
Dimension | 19711059 mm |
hnyav | txog 300 g |
Waterproof thiab plua plav pov thawj | IP65 |

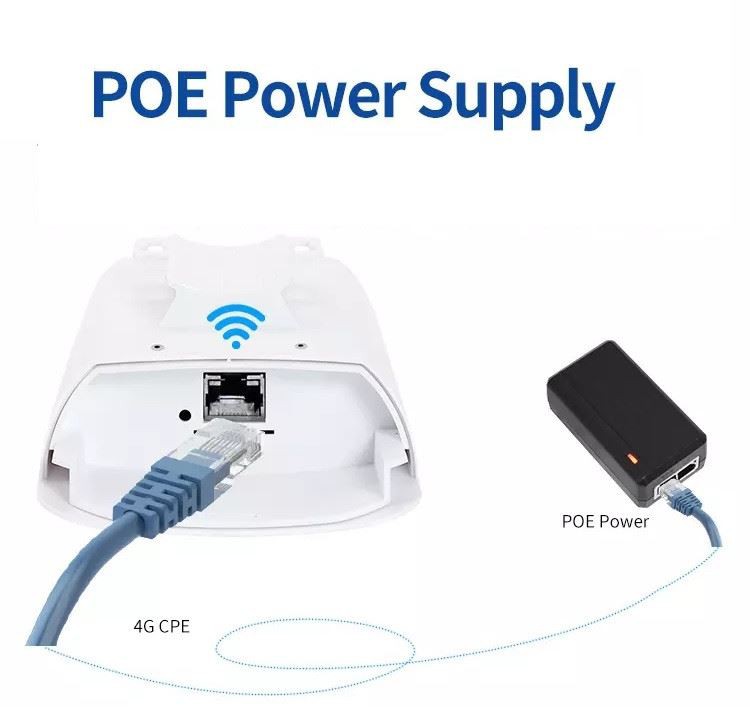

POE Fais fab mov
Lub 24V 1A POE fais fab mov muab lub zog rau lub cuab yeej, thiab POE chaw nres nkoj ntawm POE fais fab mov txuas nrog WAN chaw nres nkoj ntawm lub cuab yeej.
1. POE fais fab rau lub zog ntawm lub cuab yeej, 4G rau WiFi.
POE chaw nres nkoj ntawm POE fais fab mov txuas nrog CPE ntaus ntawv, thiab LAN tsis txuas nrog. Nws tsuas yog muab lub zog rau cov cuab yeej CPE, thiab CPE ncaj qha xa WiFi rau lwm lub terminals los txuas rau lub network.
2. POE fais fab mov, CPE khoom siv 4G rau wired.
A. CPE converts 4G rau cable, thiab ces cable rau cable.
B. CPE yuav hloov 4G rau wired, xaim rau WiFi

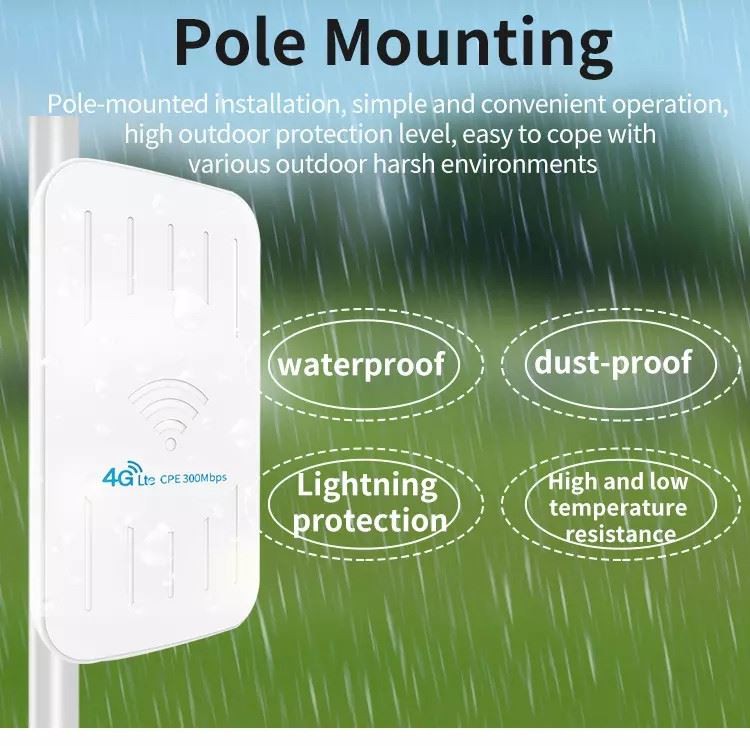

Ncej Mounting
Ncej-mounted installation, yooj yim thiab yooj yim ua hauj lwm, siab tiv thaiv sab nraum zoov theem, yooj yim rau tiv nrog ntau yam sab nraum zoov ib puag ncig.
Ua-hauv 5dBi kav hlau txais xov
Ua- nyob rau hauv omnidirectional 5dBi kav hlau txais xov tuaj yeem npog lub vojvoog ntawm 50-100 meters, ruaj khov teeb liab kis ceev, thiab ua tau raws li kev xav tau hauv Internet sab nraum zoov.
300 Mbps
Saib -cov yeeb yaj kiab siab, ua si, saib VR tsos, 300Mbps, txhua yam koj xav tau, ua si raws li koj xav tau.
Cim npe nrov: Sab nraum zoov 4G LTE CPE odu wireless router, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, luv nqi, pheej yig, ua nyob rau hauv Suav teb
