300M 4G CPE Router Europe Version
2, LTE CAT 4 1T2R 2X2MIMO
3, LTE FDD TDD, WCDMA band txhawb nqa
4, 1WAN ntxiv rau 2LAN ntxiv rau 802.11b/g/n
5, SIM daim npav qhov
Xa kev nug
Product Details of300M 4G CPE Router Europe Version
Lub ntsiab nta:
1. Hloov ntawm 4G mus rau WIFI yam tsis rub lub network cable
2. 4G tag nrho -netcom, luv nqi xaiv

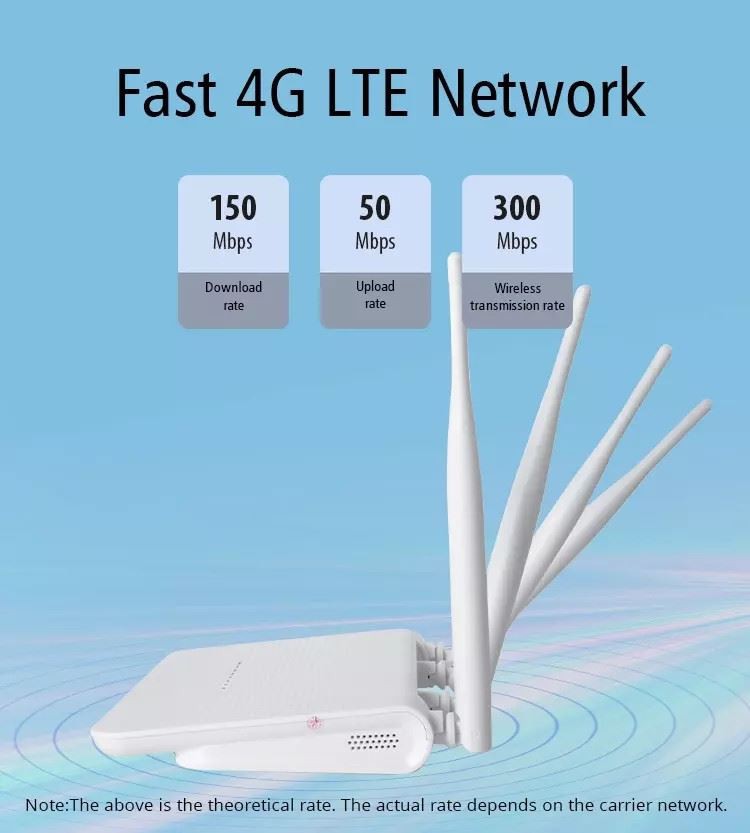

3. LTE CAT.4 mus txog 150Mbps.

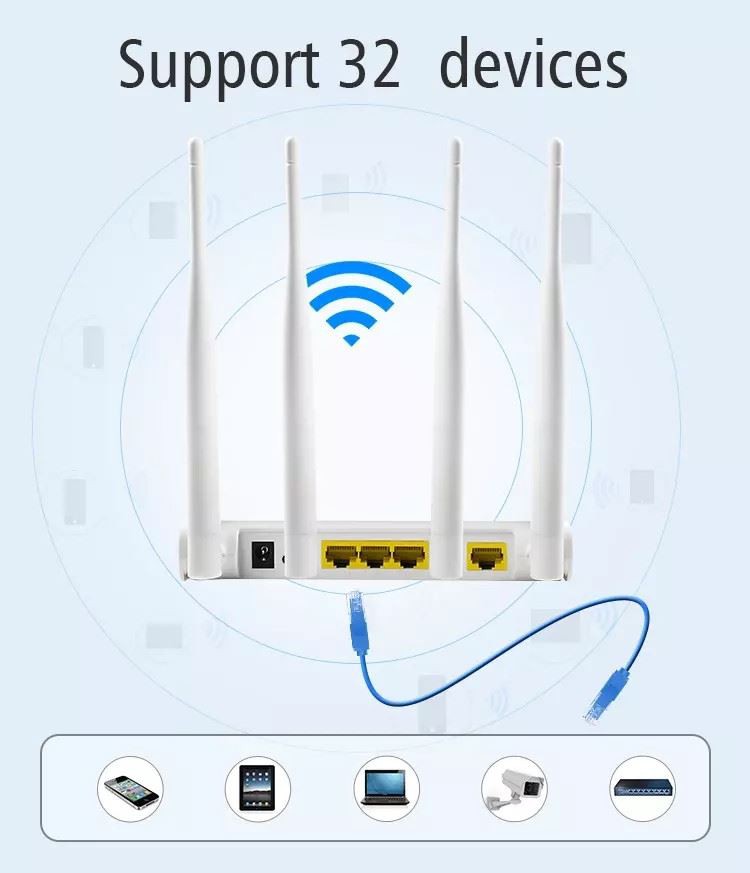

4. Txhawb txog li 32 tus neeg siv nkag mus rau hauv internet.
5. Plug rau hauv ib daim npav kom nkag mus hauv Internet thiab txaus siab rau kev ywj pheej
- Zaus Bands:
4G FDD: B1, B3, B5, B5, B8
TSI: B38, B40, B41
3G UMTS: B1, B3, B8
Technical Parameter | ||
Interface | Network | 4 Lan |
SIM | 2 ff sim | |
Khawm | rov pib dua | |
DC adapter | Input voltage: 12V-1A | |
Kev daws | Routing thiab WiFi chipset tsum | MTK |
Puag | Routing thiab WiFi chipset qauv | MT7628 N |
Routing thiab WiFi processor info | IEEE 80 2.11 /b/g/n | |
DDR/SPI | 64 MB/16 MB | |
RF | Main kav hlau txais xov | Sab hauv kav hlau txais xov |
Tau txais ntau hom kav hlau txais xov | Sab hauv kav hlau txais xov | |
WiFi band | 2400MHz-2483.5MHz | |
MIMO rau WiFi | 5dbi x 2 | |
Max. transmitter zog rau WiFi | 802.11b 24dBm±2dBm; | |
Software | Lus | Lus Suav |
Kev teeb tsa APN | Txhawb nqa | |
Device Settings | Txhawb nqa | |
WIFI chaw | Txhawb nqa | |
Routing Settings | Txhawb nqa | |
Firewall Settings | Txhawb nqa | |
LED | Txhawb nqa | |
Txuj kev | WiFi tus qauv | 802.11b/g/n (22 11n nta) |
WiFi kev ruaj ntseg | WPA/WPA 2 | |
Qhov system | Linux | |
| IE (8.0 thiab tom qab ntawd) | |
Firefox (3.0 thiab tom qab ntawd) | ||
Safari (4.0 thiab tom qab ntawd) | ||
Opera (10.0 thiab tom qab) | ||
Chrome (10.0 thiab tom qab) | ||
Ib puag ncig | Ua haujlwm kub | 0 rau 55 ° C |
Cia kub | -40 txog 70 ° C | |
Cov av noo | 5 mus rau 95 feem pua | |
Specifications:
4G Peak Ceev:
LTE FDD: 150Mbps (DL) / 50Mbps (UL)
LTE TDD: 130Mbps (DL) / 30Mbps (UL)
DC -HSDPA: 21Mbps (DL)
HSUPA: 5.76Mbps (UL)
WCDMA: 384Kbps (DL) / 384Kbps (UL)
WiFi Ceev:
WIFI IEEE 802.11b: 11/5.5 Mbps
WIFI IEEE 802.11g: Max 54 Mbps
WIFI IEEE 802.11n: Max 300 Mbps
WIFI IEEE 802.11ac: Max 1200 Mbps
Kev sib txuas lus tus qauv:
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.11b/g/n (2.4G WLAN)
Wireless Security:
WPA/WPA2 kev ruaj ntseg mechanism (WPA-PSK siv TKIP lossis AES)
Kho vajtse Configuration
- Wireless Technology: 802.11b/g/n 300m MIMO technology.
- Flash Driver: 2MB/8MB.
- WAN Gate: WAN 10/100Mbps Adaptive network interface1.
- LAN Gate: LAN 10/100Mbps Adaptive network interface3.
- SIM: 1 2FF SIM qhov
- Loj kav hlau txais xov: 5dBi clip- ntawm lub kav hlau txais xov yas;
4G 2T2R 5dBi clip- ntawm cov kav hlau txais xov yas2;
WiFi 2T2R 2.4G 5dBi clip- ntawm tus kav hlau txais xov yas2.
- Power supply: 12V/1A, Power consumption＜10W.
- Nias khawm: 1 pib dua khawm, nias ntev li 3 vib nas this los kho lub Hoobkas teeb tsa; 1 WPS tus yuam sij, nias ntev rau 1-2 vib nas this kom nkag mus rau WPS cov txheej txheem hloov kho.
- Qhov taw qhia Teeb: 8 pawg: POWER, WAN, LAN1, LAN2, LAN3, 2.4G, 4G, WPS.
- Qhov Loj: Ntev 86.5 hli, Qhov siab 86.5mm, Dav 28mm.
- Ua haujlwm / khaws cia kub: -10 degree -50 degree /-40 degree -70 degree .
- Ua hauj lwm/Storing Humidity: 5 feem pua -95 feem pua (tsis-condensing).
