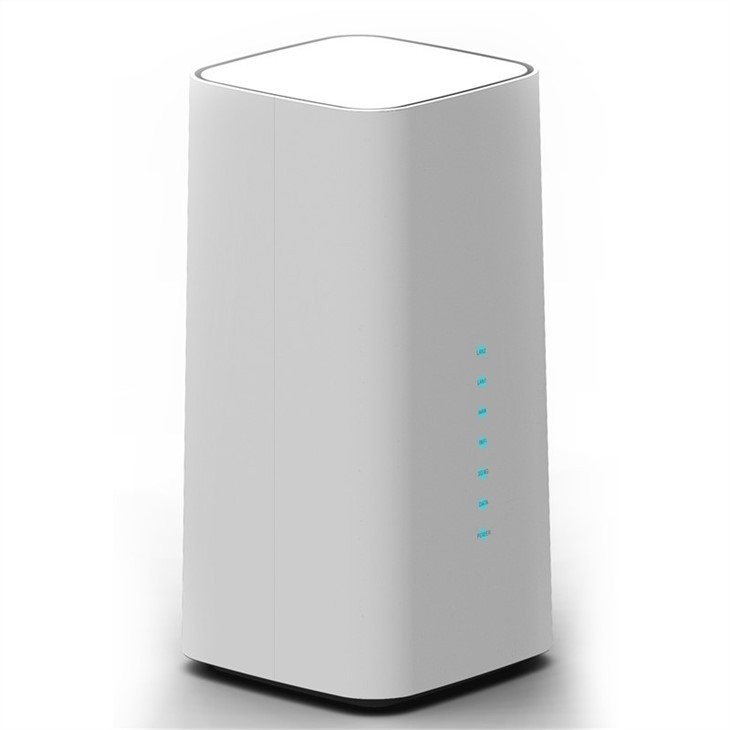

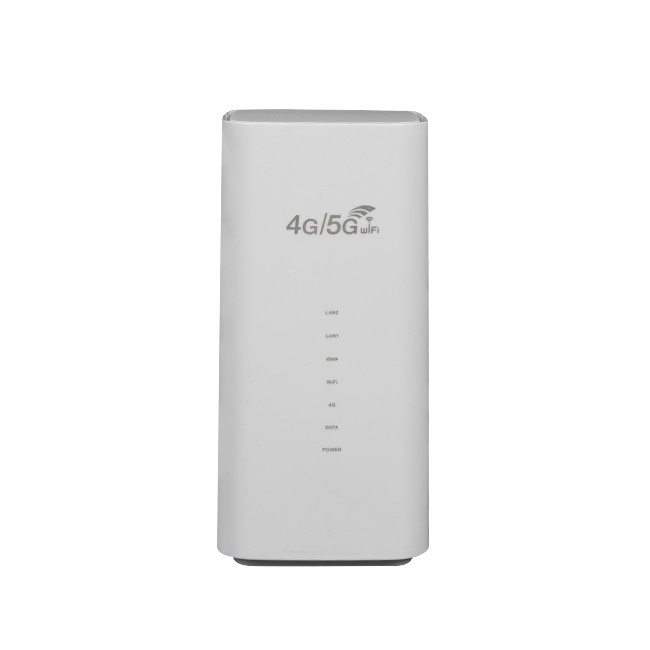

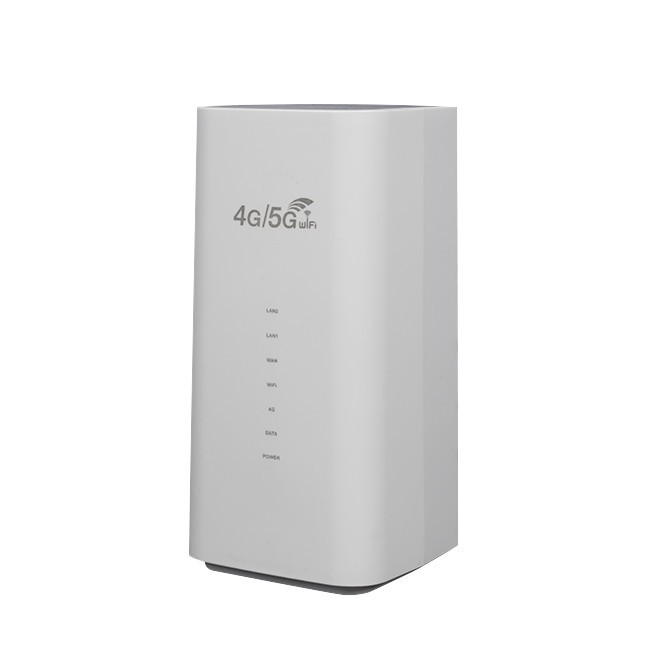

Xauv 4G Wireless CPE Router

Kev Taw Qhia:

Cov cuab yeej no yog 4G LTE CPE tshiab nrog LTE Qeb 4 thev naus laus zis, siab -kev ua tau zoo 4G broadband wireless router, txhawb nqa qhov siab tshaj plaws DL UL tus nqi ntawm 150 / 50Mbps. Kev cia siab rau 22 MIMO thev naus laus zis, nws muab siab - cov ntaub ntawv kev sib txuas lus zoo thiab ua kom zoo tshaj WiFi cov ntaub ntawv xa mus. Diversified WiFi qauv thiab encryption hom kom muaj kev nyab xeeb thiab ruaj khov ntawm cov khoom. Nrog ntau hom kev ua haujlwm (4GWiFi 4G rau cable), nplua nuj network raws tu qauv thiab kev sib txuas txhim khu kev qha, nws tuaj yeem siv dav hauv kev lag luam thiab hauv tsev. Nws muaj kev ua haujlwm ntawm kev rov pib dua thiab kev tiv thaiv firewall. Tus tsim- hauv kev saib xyuas kho vajtse tuaj yeem tiv thaiv kom tsis txhob muaj teeb meem thaum lub sijhawm ua haujlwm. Ua dual firmware tuaj yeem rov qab tau lub kaw lus vim software hloov kho tsis ua haujlwm lossis pib ua haujlwm txawv txav los ntawm software.

Nta:

1. Multi network interface tsim, muaj peev xwm muab wired network rau lwm yam khoom siv.

2. Ua nyob rau hauv kav hlau txais xov, thiab kev txais peev xwm ntawm ntau lub kav hlau txais xov yog qhov zoo.

3. ntsaws rau hauv SIM daim npav, xa cov teeb liab WiFi, yooj yim kom muaj lub network.

4. Hais lus zoo rau cov teeb meem uas tsis muaj net muaj, ntsaws rau hauv daim npav thiab muaj net txhua lub sijhawm thiab nyob qhov twg.

Specification:

4G LTE CPE Router Cat FDD / TDD wireless router nrog RJ45

Hom: 4G LTE WIFI CPE Router

Zaus Band: FDD kev khiav hauj lwm bandB1, B3, B7, B8, B20 (yeem)

TDD kev khiav hauj lwm band B38, B40, B41

WCDMA: B1, (B5, B8 yeem)

FDD / TDD: Mus txog 150Mbps DL; Mus txog 50Mbps UL

WCDMA: HSDPA rau 42.2MbpsDL; HSUPA mus txog 11.5MbpsUL

Wi-Fi Chipset: MT6625L

Wi-Fi: IEEE802.11b/g/n

WiFi Hloov tus nqi: mus txog 150Mbps

Encryption: Wi-Fi Protected Access TM (WPAWPA2) 2WIFI ​​hom 2.4G

Txawv versions muaj los txhawb cov sib txawv network bands:

Asian version: FDD: /B3/B5/B8; TDD: B38/B39/B41: WCDMA: B1/B5/B8

Teb chaws Europe version: FDD: B1 / B3 / B5 / B7 / B20 / B28: TDD: B38 / B41: WCDMA / B5 / B8

South America version: FDD: B2 / B3 / B4 / B5 / B7 / B8 / B28A / B28B / B66 TDD: B38 / B40 / B41: WCDMA: B2 / B4 / B5 / B8

Kev sib txuas lus Standard

IEEE 802.3 (Ethernet);

IEEE 802.3u (Fast Ethernet);

IEEE 802.11b/g/n (2.4G WLAN).

Wireless Security

WPA/WPA2 kev ruaj ntseg mechanism (WPA-PSK siv TKIP lossis AES)

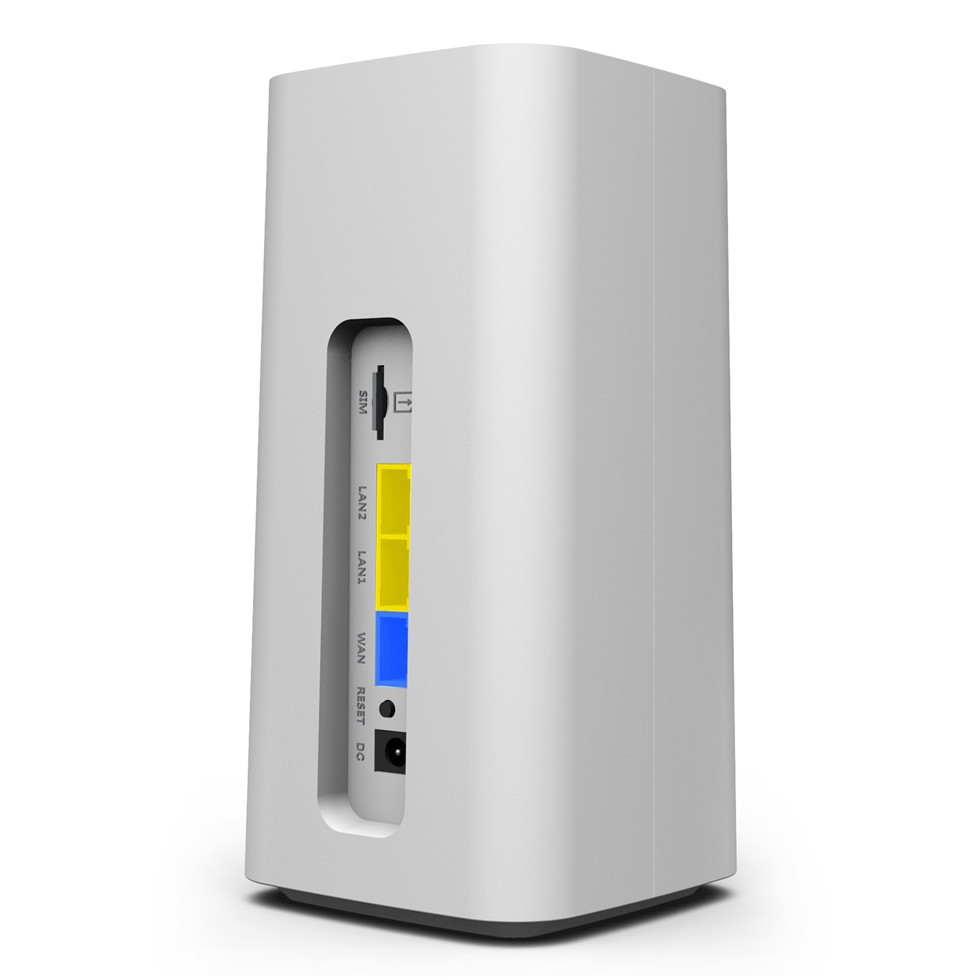

Kho vajtse Configuration

- Wireless Technology: 802.11b/g/n 300m MIMO technology.

- Flash Driver: 2MB/8MB.

- WAN Gate: WAN 10/100Mbps Adaptive network interface1.

- LAN Gate: LAN 10/100Mbps Adaptive network interface2.

- RJ11: 1 (yeem)

- SIM: 1 2FF SIM qhov

- Loj kav hlau txais xov: 5dBi clip- ntawm lub kav hlau txais xov yas;

4G 2T2R 5dBi clip- ntawm cov kav hlau txais xov yas2;

WiFi 2T2R 2.4G 5dBi clip- ntawm tus kav hlau txais xov yas2.

- Power supply: 12V/1A, Power consumption＜10W.

- Nias khawm: 1 pib dua khawm, nias ntev li 3 vib nas this los kho lub Hoobkas teeb tsa; 1 WPS tus yuam sij, nias ntev rau 1-2 vib nas this kom nkag mus rau WPS cov txheej txheem hloov kho.

- Qhov taw qhia Teeb: 8 pawg: POWER, WAN, LAN1, LAN2, LAN3, 2.4G, 4G, WPS.

- Qhov Loj: Ntev 86.5 hli, Qhov siab 86.5mm, Dav 28mm.

- Ua haujlwm / khaws cia kub: -10 degree -50 degree /-40 degree -70 degree .

- Ua hauj lwm/Storing Humidity: 5 feem pua ​​-95 feem pua ​​(tsis-condensing).

ENTERPRISE ADVANTAGE

Kev tshaj lij

Peb yog cov chaw tsim khoom ntawm cov khoom siv wireless network rau ntau tshaj 10 xyoo.

Ib - nres kev pabcuam

Peb tsom rau RD, tsim, tsim khoom thiab kev lag luam.

OEM / ODM

OEM / ODM zoo siab txais tos.

Siab zoo

Tag nrho cov khoom tau dhau los ntawm ISO9001 zoo system thiab ROHS.

Muaj peev xwm tsim tau

3 SMT kab. 5 sib dhos kab. 5 lub tshuab txhaj tshuaj yas, 3000pcs router ntau lawm ib hnub.
