Ntse WiFi 5G NR Sab Hauv Tsev CPE Router Xauv
1 * RJ11 txhawb VoNR VoLTE lossis VOIP
Txhawb ntau tshaj 64 tus neeg sivGigabit RJ45 LAN Ports
Xa kev nug

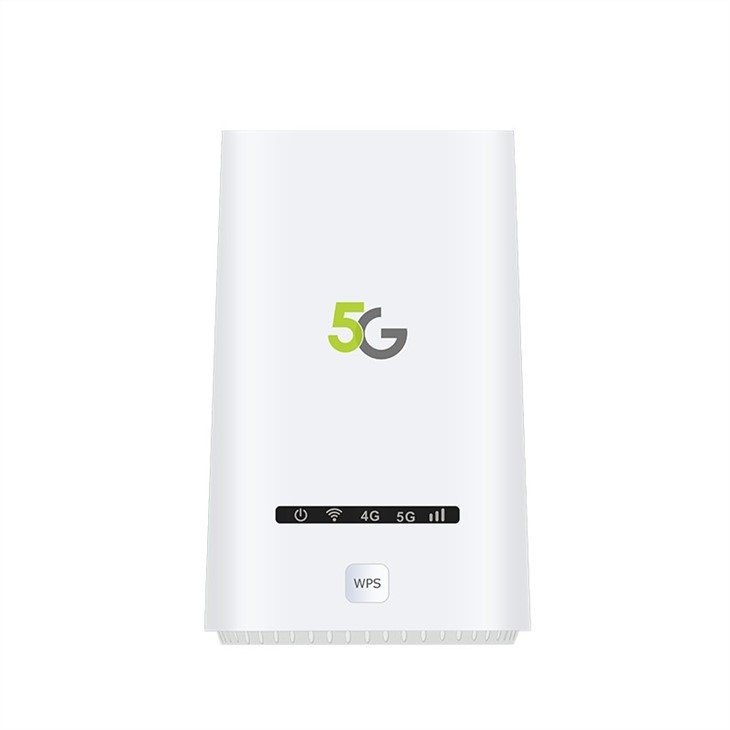

Product Details ofNtse WiFi 5G NR Sab Hauv Tsev CPE Router Xauv
Ntse WiFi 5G NR sab hauv tsev CPE router xauv
CP510 yog 5G sab hauv cov khoom siv ntau qhov kev pabcuam, tshwj xeeb tsim los ua kom tau raws li cov ntaub ntawv sib xyaw ntawm cov neeg siv nyob hauv tsev, koom nrog thiab koom nrog. Cov khoom txhawb nqa Gigabit tes hauj lwm thiab dual-band Wi-Fi AP ua haujlwm. CP510 yog qhov ua tau zoo 5G sab hauv tsev CPE, Nws yog qhov tsim nyog rau tsev neeg lossis kev lag luam xwm txheej uas yuav tsum tau xa tawm sai ntawm cov xov tooj cua sib txuas thiab WIFI hots pots. nws txhawb NR (SA&NSA), TDD-LTE, FDD-LTE, hloov cov ntaub ntawv xov tooj ntawm tes mus rau WIFI thiab cov ntaub ntawv xov tooj txuas xov tooj, txhawb nqa 4 gigabit LAN chaw nres nkoj, 2.4G ntxiv rau 5G dual-band WIFI-AP, txhawb nqa xov tooj.
Kev ua haujlwm siab chipset
Ua-hauv UNISOC: CP510 Realtek: 8198D .it muaj qhov zoo tshaj plaws 5G mobile network kev ua haujlwm thiab ua haujlwm nrog kev sib koom ua ke thoob ntiaj teb 5G 2G ntau hom.
Peak Throughput
TDD / FDDLTE: Qeb 12 nrog 450Mbps (DL)
TDD / FDDLTE: Qeb 13 nrog 150Mbps (
5G NR: 1 .25Gbps (UL), 2.45 Gbps (DL)
Gigabit Ports

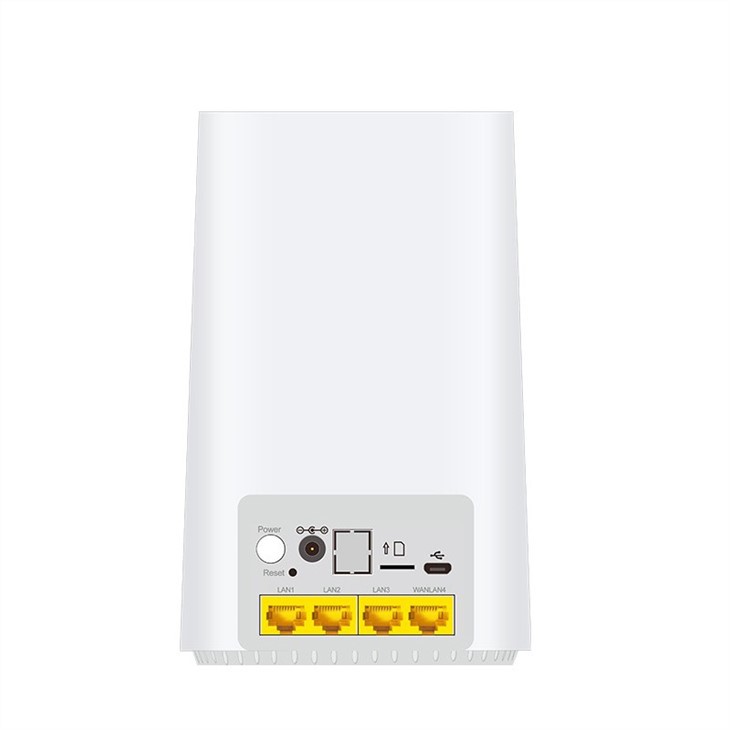

Gigabit RJ45 LAN Ports 10 / 100 / 1000auto-sensing.Qhov chaw nres nkoj LAN tso cai rau koj txuas PC rau nthwv internet ntawm CPE.
2 txoj hauv kev kom tau txais online
4 Gigabit RJ45 LAN Ports 10 / 100 / 1000auto-sensing. Ob daim npav siv Internet thiab kev txhawb nqa broadband.
64 ntxiv rau cov neeg siv khoom
Muab ntau lub davhlau ya nyob twg nkag mus rau hauv lub peev xwm kom ua tau raws li qhov xwm txheej tag nrho, nkag mus rau cov kev xav tau ntawm lub tsev ntse ntse yav tom ntej.
360 degree omnidirectional kav hlau txais xov
Cov qauv tsim qauv, txhawb nqa ultra-high-txhais video playback.
Lub suab lauj
1 * RJ11 txhawb VoNR/VoLTE lossis VOIP
Specification:
|
Kho vajtse |
||
|
Chipset |
Tus Qauv Zauv: 8198D |
|
|
Cellular hom |
NR/TDD-LTE/FDD-LTE/WCDMA/TD-SCDMA/GSM |
|
|
Flash |
2G |
|
|
RAM |
DDR{0}}Gb |
|
|
Interface |
4 * 10/100/1000 Mbps, LAN1 los yog teeb tsa WAN 口 |
|
|
Xov tooj chaw nres nkoj |
1 * RJ11 |
|
|
Qhov taw qhia lub teeb |
9 LED Indicators (Power qhov chaw, WIFI, WPS, cov ntaub ntawv txuas, 3 xim teeb liab teeb, 4 * network chaw nres nkoj teeb) |
|
|
SIM daim npav |
1 * SIM (FF) txhawb 1,8v & 3.3v Adaptive |
|
|
Ib qho tseem ceeb pib dua |
rov pib dua |
|
|
Kav hlau txais xov |
6 built-in cellular antennas ntxiv rau 2 WIFI kav hlau txais xov |
|
|

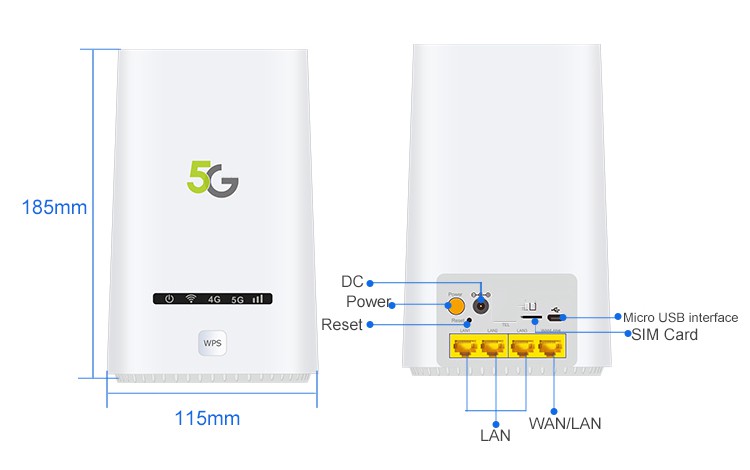

Loj |
L * W * H: 117 * 117 * 180mm |
|
|
Kev siv fais fab |
< 24W |
|
|
Hwj chim |
DC 12V / 2A |
|
|
Ua haujlwm kub |
-10 degree --45 degree |
|
|
Cia kub |
-45 degree --85 degree |
|
|
5G lub ntsiab ntsuas |
||
|
3GPP Tso Tawm 15, NSA & SA |
||
|
Txhawb nqa zaus band |
N78\79\41 |
|
|
CA |
TDD 3CC; FDD 1CC plus TDD 2CC |
|
|
MIMO |
Kev them nyiaj yug: Downlink 4 * MIMO, Uplink 2 * L MIMO |
|
|
Txhawb nqa bandwidth |
5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M, 80M, 90M,100M |
|
|
SCS |
30 hli, 15 hli |
|
|
IPv4 & IPv6 |
Txhawb IPv4, IPv6, IPv4 & IPv6 dual pawg |
|
|
Downgoing txhais tau tias ceev |
1.7Gbps (@100MHz 1CC, 4RX, 256QAM) |
|
|
Nruab nrab upward tshaj tawm |
1Gbps (@100MHz 1CC, 2TX, 256QAM) |
|
|
Tso zis zog |
23 ± 2 dBm, Txhawb lub zog siab hom |
|
|
Kav hlau txais xov |
Sab hauv 6 antennas |
|
|
Kav hlau txais xov nce |
3-5 dBi |
|
|
Routing hom |
||
|
LAN |
Koj tuaj yeem teeb 2 IP chaw nyob rau 2 lub network sib txawv ntawm sab LAN |
|
|
WAN |
Yuav tau dynamically teem WAN IP |
|
|
Routing raws tu qauv |
Txhawb static routing |
|
|
DNS |
txhawb Ping / taug txoj kev / tcpdump |
|
|
Public IP faib |
Txhawb kev teeb tsa |
|
|
NAT |
||
|
NAT |
Txhawb nqa NAT muaj nuj nqi |
|
|
Firewall |
Txhawb firewall muaj nuj nqi |
|
|
Routing raws tu qauv |
Static routing |
|
|
DMZ |
Txhawb nqa |
|
|
DHCP |
Txhawb nqa |
|
|
DNS |
Txhawb kev teeb tsa tsis siv neeg DNS thiab phau ntawv DNS |
|
|
WIFI muaj nuj nqi |
||
|
Cov neeg siv tuaj yeem tua / tawm ntawm WIFI muaj nuj nqi los ntawm WIFI hloov lossis nplooj ntawv web |
||
|
WIFI tsis tuaj yeem teeb tsa los ntawm nplooj ntawv web: SSID lub npe, seb puas yuav nkaum SSID, tus nqi, hom, channel, thiab lwm yam. |
||
|
Txhawb kev teeb tsa encryption txoj kev: Tsis muaj encryption, WEP-OPEN, WEP- SHARED, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES ) |
||
|
Txhawb WPS: Txhawb PBC hom |
||
|
Kev them nyiaj yug WiFi raws tu qauv: IEEE 802.11 b/g/n (2.4 GHz), IEEE 802.11 a/n/ac (5G) |
||
|
WiFi Txhawb cov neeg siv ntau tshaj plaws: 64 |
||
|
Txhawb ntau SSID |
||
|
Txhawb tsis siv neeg channel thiab phau ntawv channel |
||
|
Txhawb qhua hom |
||
|
Firewall |
||
|
Tso cai Ping ntaus ntawv los ntawm WAN chaw nres nkoj |
||
|
Tso cai HTTPs nkag los ntawm WAN |
||
|
Txhawb kev tswj hwm los ntawm WAN ntawm HTTPs |
||
|
Txhawb DMZ IP chaw nyob |
||
|
Txhawb ICMP redirect |
||
|
Txhawb IP filtering |
||
|
Txhawb MAC filtering |
||
|
Txhawb URL filtering |
||
|
Txhawb UPnP |
||
|
Txhawb chaw nres nkoj xa mus |
||
