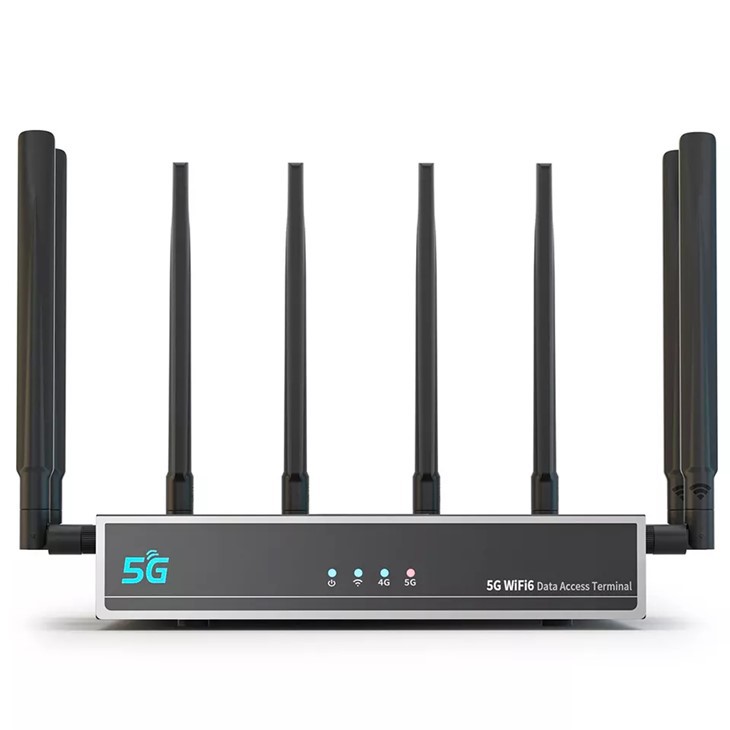

1800Mbps Wifi6 Dual Band 5g Router

1800Mbps wifi6 dual band 5g router

CPE yog sib xws nrog NSA / SA dual-hom, haum rau txhua hom network thoob ntiaj teb, nws txhais tau tias koj tsuas yog ntsaws thiab

ua si thiab txaus siab rau ultra-ceev broadband kev twb kev txuas ntawm txhua qhov chaw.

Nws yog raws li hom tshiab embed platform, nws tuaj yeem txaus siab rau

loj hlob mobilekev sib txuascov kev xav tau thiab muab kev ceev nrawm tshaj li koj xav.

CPE coj txoj hauv kev tshiab los pab kom koj paub txog VR / AR / 4K / 8K streaming dawb thiab yooj yim. Nrog 802.11ax (Wi-Fi 6)

thev naus laus zis built-in, CPE ib leeg muaj kev pabcuam wireless thiab ntau dua bandwidth. Lub caij no, CPE coj ntau dua

kev ruaj ntseg, zoo dua network efficiency thiab roj teeb lub neej ntev.

Nta:

Wi-nkaus 6 (802.11 hli)

Kev hloov pauv Wi-nkaus thev naus laus zis nrog OFDMA thiab DL MU-MUMI, kab nrawm dua, ntau tus neeg siv kev sib txuas, qis dua

latency, zoo tshaj plaws network efficiency.

Siab dua Wireless Muaj peev xwm

Dual-band 4 spatial kwj, CPE tso tawm 1800Mbps wireless bandwidth (600 ntxiv rau 1200), ua rau koj muaj kev thaj yeeb nyab xeeb ntawm kuv.

thaum txaus siab rau UHD cov yeeb yaj kiab, kev ua si hauv online ntawm lub sijhawm maj nrawm hauv tsev. Nws yog yav tom ntej-pov thawj peev kiag li.

Hybrid MESH plus Kev sib koom tes

Lub CPE tau txais cov cuab yeej siv mesh thiab txhawb nqa "wired / wireless" hybrid networking. Nws yooj yim heev los npog tag nrho

cov ces kaum thiab tuag-zones los ntawm kev ntxiv ib qho ntxiv MESH ntxiv rau ntawm (lwm series ntawm router).

5G Cellular

Ua-hauv Qualcomm™ SDX55 modem, nws muaj 5G mobile network kev ua tau zoo tshaj plaws thiab ua haujlwm nrog kev sib koom ua ke thoob ntiaj teb

5G rau 2G ntau hom.

5G Cov ntaub ntawv

1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System

2) 5G Network Hom: SA (standalone), NSA (tsis nyob ib leeg)

3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

5) 5G Standards: 3GPP Tso Tawm 15

6) 5G SA kis tau tus mob ceev: 2.1Gbps / 900Mbps (txog ISPs)

7) 5G NSA kis ceev: 2.5Gbps / 650Mbps (txog ISPs)

4G Cov ntaub ntawv

8) LTE Qeb: Down Cat 16 / UP Cat 18

9) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

11) LTE Down 4 × 4 MIMO: B1 / B2 / B3 / B4 / B7 / B25 / B30 / B32 / B34 / B38 / B39 / B40 / B41 / B42 / B43 / B48 / B66

12) WCDMA: B1/B2/B3/B4/B5/B8/B19

13) LTE : Down 1.0 Gbps; UP 200 Mbps

WiFi 6 Cov ntaub ntawv

1) Coding Technology: 1024-QAM / OFDMA

2) Xov tooj cua ua haujlwm: # 1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz

3) Wi-Fi Standard Conformance: WiFi 6 thiab 802.11ac / 802.11n rov qab

4) Peak Connections:>100 plus Client

5) Kav hlau txais xov: sab nraud 4 pcs high quality antennas nrog 4 pcs FEM Cheebtsam.

Kho vajtse specifications

1) CPU: MT7621AT

2) Nco: 16MB Flash ntxiv rau 256MB DDR3

3) Ethernet: 1 * 1Gbps WAN, 2 * LAN 1Gbps

4) 1 * SIM Slot (Nano-SIM)

5) Pib dua khawm

6) MESH ntxiv khawm

7) MESH ntxiv rau LED Hloov

8) LED qhov taw qhia

- MESH ntxiv rau Kev Ua Haujlwm (ua pa taws)

– 4G Status

– 5G Status

- WiFi Status

- Lub zog muaj zog

9) General

- Kev siv lub zog:<20W

- DC fais fab mov: 12V / 2A

- Ua haujlwm kub: 0 degree -40 degree, Cia kub: -20 degree - ntxiv rau 70 degree

- Humidity: 5 feem pua ​​-95 feem pua

- Luj: TBD

Technical Specifications

Qauv: M10K21

CPU MT7621AT plus SDX55

Flash 16 MB

RAM 2 Gb

WiFi zaus 2.4G & 5G

WiFi Standard 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO

WiFi 2.4GHz: 600Mbps, 5GHz: 1200Mbps

5G Standard3 PIB Tso tawm 15 NSA/SA kev ua haujlwm, Sub -6 GHz

Dab tsi yog hauv tus pob?

• Ib (1) 5G CPE Router (M10K21)

• Ib (1) 1m Cat6 Ethernet cable

• Ib (1) Fais Fab Adapter

• Phau Ntawv Qhia Pib Ceev
