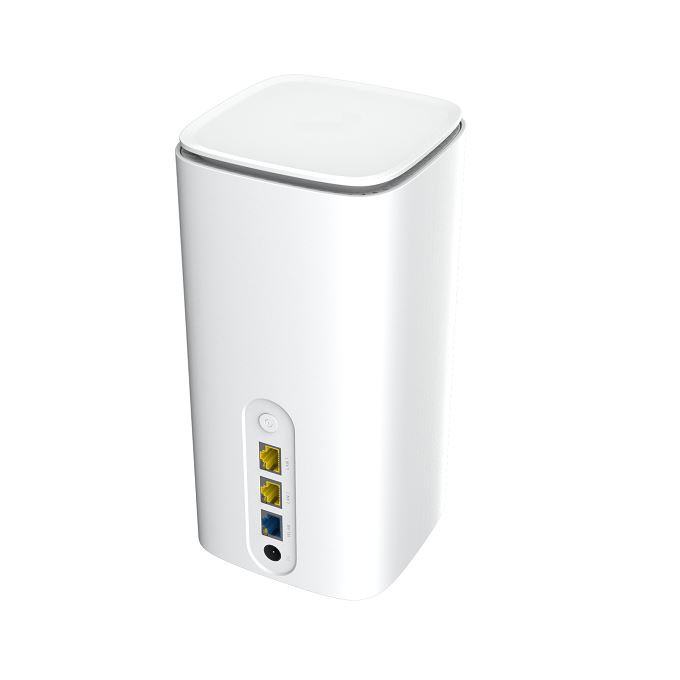

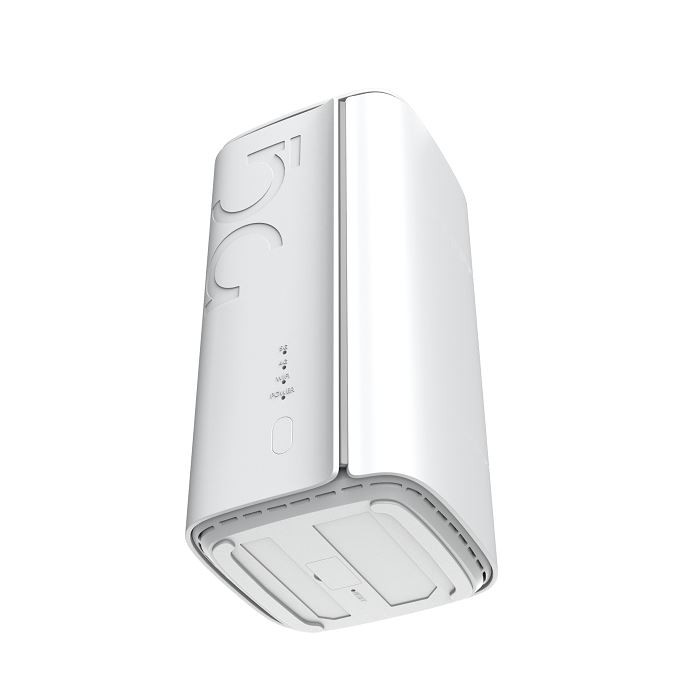

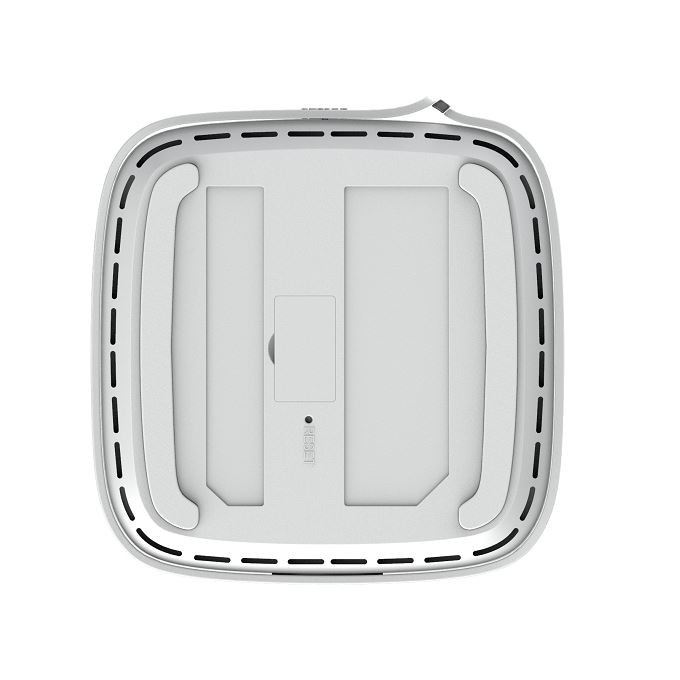

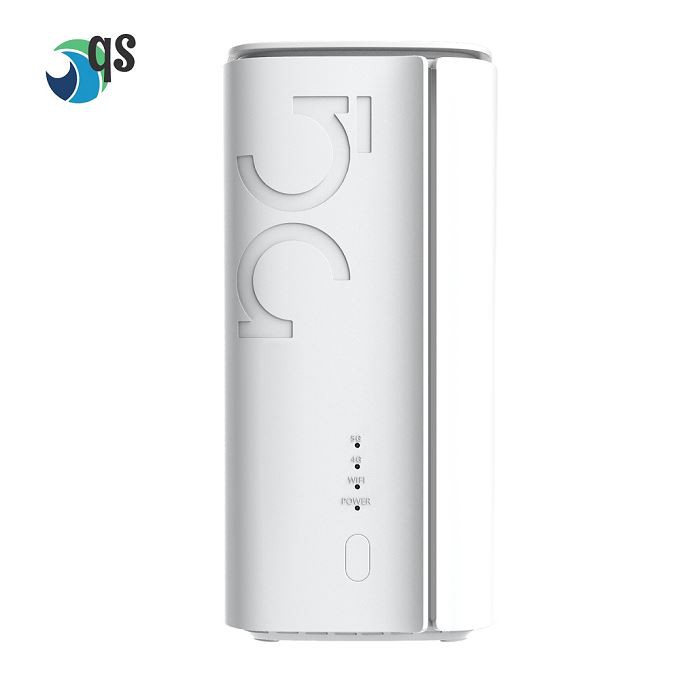

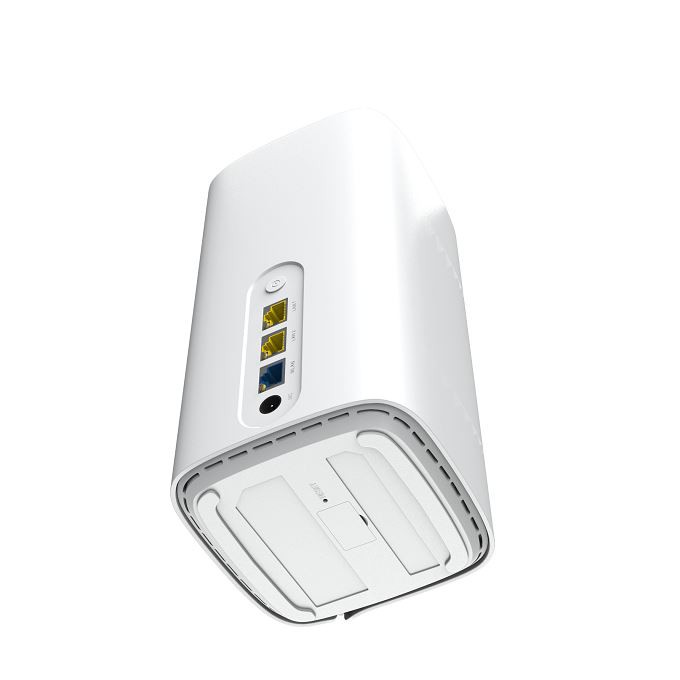

5G & WiFi -6 Ntse Router System CPE
M01 5G CPE
1 Khoom Txheej txheem cej luam
5G & WiFi -6 Ntse Router System (CPE), yog raws li hom tshiab embed platform, nws tuaj yeem txaus siab rau kev loj hlob ntawm teskev sib txuascov kev xav tau thiab muab kev ceev nrawm tshaj li koj xav.
CPE yog sib xws nrog NSA / SA dual-hom, haum rau txhua hom kev sib txuas thoob plaws ntiaj teb, nws txhais tau tias koj tsuas yog ntsaws thiab ua si thiab txaus siab rau kev sib txuas ceev ceev ntawm txhua qhov chaw.
CPE coj txoj hauv kev tshiab los pab kom koj paub txog VR / AR / 4K / 8K streaming dawb thiab yooj yim. Nrog 802.11ax (Wi-Fi 6) thev naus laus zis built-in, CPE ib leeg muaj qhov dav dav wireless thiab ntau bandwidth. Meanwhile lub CPE coj kev ruaj ntseg dua, zoo dua network efficiency thiab ntev roj teeb lub neej.
Ntsiab nta
5G Cellular
Ua-hauv Qualcomm™ SDX55 modem, nws muaj 5G mobile network kev ua tau zoo tshaj plaws thiab ua haujlwm nrog kev sib koom ua ke thoob ntiaj teb 5G rau 2G ntau hom.
Wi-Fi 6 (802.11 hli)
Kev hloov pauv Wi-nkaus thev naus laus zis nrog OFDMA thiab DL MU-MUMI, kab nrawm dua, ntau tus neeg siv kev sib txuas, qis dua latency, zoo tshaj plaws network efficiency.
Siab dua Wireless Capacity
Dual-band 4 spatial kwj, CPE tso tawm 1800Mbps wireless bandwidth (600 ntxiv rau 1200), ua rau koj muaj kev thaj yeeb nyab xeeb ntawm kuv thaum txaus siab rau UHD cov yeeb yaj kiab, kev ua si hauv online ntawm cov sij hawm maj nrawm hauv tsev. Nws yog yav tom ntej-pov thawj peev kiag li.
Hybrid MESH plus Kev sib koom tes
Lub CPE tau txais cov cuab yeej siv mesh thiab txhawb nqa "wired / wireless" hybrid networking. Nws yog qhov yooj yim heev los npog txhua lub ces kaum thiab thaj chaw tuag los ntawm kev ntxiv ib qho ntxiv MESH ntxiv rau ntawm (lwm lub router). nws txhim kho kev xa tawm ntawm wireless network thiab optimized seamless feature.
5G Cov ntaub ntawv
5G Cellular
1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System
2) 5G Network Hom: SA (standalone), NSA (tsis nyob ib leeg)
3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5) 5G Standards: 3GPP Tso Tawm 15
6) 5G SA kis tau tus mob ceev: 2.1Gbps / 900Mbps (txog ISPs)
7) 5G NSA kis ceev: 2.5Gbps / 650Mbps (txog ISPs)
4G Cov ntaub ntawv
n 4G Cellular
8) LTE Qeb: Down Cat 16 / UP Cat 18
9) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
11) LTE Down 4 × 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
12) WCDMA: B1/B2/B3/B4/B5/B8/B19
13) LTE : Down 1.0 Gbps; UP 200 Mbps
WiFi6 Datasheet
WiFi 6（802.11 ib）
1) Xov tooj cua ua haujlwm: # 1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
2) Coding Technology: 1024-QAM / OFDMA
3) Peak Connections:>100 plus Client
4) Wi-Fi Standard Conformance: WiFi 6 thiab 802.11ac / 802.11n rov qab
5) Kav hlau txais xov: built-in 4 pcs high quality antennas nrog 4 pcs sab nraud FEM Cheebtsam.
Cov ntaub ntawv Hloov
1) Txawb 4G / 5G Kev Sib Txuas (Txhawb APN)
2) Giga Ethernet Txuas
3) MESH: MESH ntxiv rau hybird
4) 2.4G / 5Ghz WiFi
5) Advanced Firewall
6) MAC Lim
7) Kev ruaj ntseg WiFi
8) VPN Passthrough thiab VPN Client (L2TP PPTP)
9) IPV4/IPV6
10) WEB / APP tswj
11) Txhim kho firmware
Hardware specifications
Kho vajtse Specification
1) CPU: MT7621AT
2) Nco: 16MB Flash ntxiv rau 256MB DDR3
3) Ethernet: 1 * 1Gbps WAN, 2 * LAN 1Gbps
4) 1 * SIM Slot (Nano-SIM)
5) Pib dua khawm
6) MESH ntxiv khawm
7) MESH ntxiv rau LED Hloov
8) LED qhov taw qhia
- MESH ntxiv rau Kev Ua Haujlwm (ua pa taws)
– 4G Status
– 5G Status
- WiFi Status
- Lub zog muaj zog
9) General
- Kev siv lub zog:<20W
- DC fais fab mov: 12V / 2A
- Ua haujlwm kub: 0 degree -40 degree, Cia kub: -20 degree - ntxiv rau 70 degree
- Humidity: 5 feem pua -95 feem pua
- Loj: 108X108X216MM
- Luj: TBD
2 Technical Specifications
Qauv | M01K21 |
CPU | MT7621AT plus SDX55 |
Flash | 16 MB |
RAM | 2gb ib |
WiFi zaus | 2.4G&5G |
WiFi Standard | 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO |
WiFi | 2.4GHz: 600Mbps, 5GHz: 1200Mbps |
5G Standard | 3GPP Tso Tawm 15 NSA/SA kev ua haujlwm, Sub-6 GHz |
5G Network Hom | NSA/SA |
5G / 4G Cov ntaub ntawv tus nqi | 5G SA kis tau tus mob ceev: 2.1Gbps / 900Mbps (txog ISPs) 5G NSA kis ceev: 2.5Gbps / 650Mbps (txog ISPs) LTE: Down 1.0 Gbps; nce 200 Mbps |
5G Zaus Bands | 5G NR NSA n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 5G NR SA n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 MIMO Downlink: 4 × 4 MIMO ntawm n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 Uplink: 2 × 2 MIMO ntawm n41 |
Qeb LTE | |
Downlink Cat 16/ Uplink Cat 18 | |
LTE-FDD | |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 | |
LTE-TDD | |
4G & 3G Zaus Bands | B34/B38/B39/B40/B41/B42/B43/B48 LAA B46 (Kev them nyiaj yug 2 × 2 MIMO) |
Downlink4 × 4 MIMO | |
B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 | |
WCDMA | |
B1/B2/B3/B4/B5/B6/B8/B19 | |
Modulation Hom | 5G:GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAMWIFI: 1024-QAM / OFDMA |
WiFi Txais Qhov Ntsuas | 2. 4 G: 11 X HE 20 : - 70 d Bm@ MCS 11 , - 80 d Bm@ MCS 0 . 11 X HE 40 : - 70 d Bm@ MCS 11 , - 80 d Bm@ MCS 0 . 11 n HT 20 : - 70 d Bm@ MCS 7 , - 80 d Bm@ MCS 0 . 11 n HT 40 : - 70 d Bm@ MCS 7 , - 78 d Bm@ MCS 0 . 11 g: - 68 d Bm@ 54 Mbps, - 82 d Bm@ 6 Mbps. 11 b: - 70 d Bm@ 11 Mbps, - 85 d Bm@ 1 Mbps.
5. 8 G: 11 a: - 72 d Bm@ 54 Mbps, - 85 d Bm@ 6 Mbps. 11 n HT 20 : - 75 d Bm@ MCS 7 , - 85 d Bm@ MCS 0 . 11 n HT 40 : - 75 d Bm@ MCS 7 , - 88 d Bm@ MCS 0 11 ac HT 80 : - 65 d Bm@ MCS 9 11 a X HT 80 : - 65 d Bm@ MCS 11 |
EVM | 802 ib. 11 n@ MCS 7 : Tsawg dua lossis sib npaug rau - 30 dB 802 ib. 11 g @ 54 M: Tsawg dua lossis sib npaug rau - 30 dB 802 ib. 11 b@ 11 M: Tsawg dua lossis sib npaug rau - 15 dB 802 ib. 11 a@ 54 M: Tsawg dua lossis sib npaug rau - 28 dB 802 ib. 11 ac @ MCS 9 : Tsawg dua lossis sib npaug rau - 33 dB 802 ib. 11 a X @ MCS 11 : Tsawg dua lossis sib npaug rau - 33 dB |
Frequency Deviation | ± 20ppm |
Dimension | 108 X 108 X 216 mm |

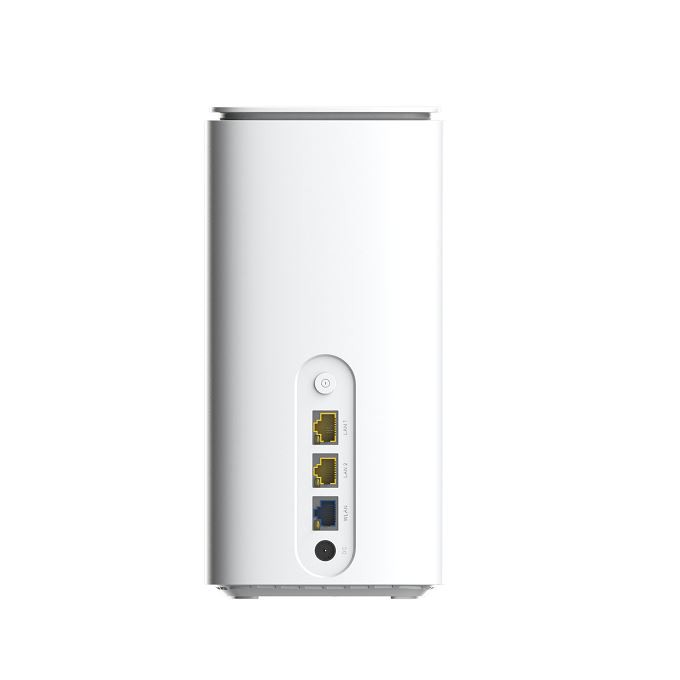

Interface | 2 * 10/100M/1000 LAN 1 * 10/100M / 1000 WAN 1 * 12V 2A DC Fais fab Input 1 Pib dua khawm 1 Ua pa lub teeb khawm 1 SIM daim npav qhov 1 MESH Networking Khawm |
Network Extension | MESH |
Rov pib dua | Pib dua (Nyem nias 10 vib nas this los kho lub Hoobkas nqis) |
MESH | Networking: luv nias (xiav networking teeb flashes) |
Qhov taw qhia LED | Fais fab, ua pa teeb, 4G teeb liab, 5G teeb liab, WiFi teeb liab |
Kev siv fais fab | ＜24W |
Ib puag ncig | Kev Ua Haujlwm Kub: -20 degree - ntxiv rau 50 degree Cia Kub: -40 degree - ntxiv rau 70 degree Humidity: 5％-95％ (Tsis yog condensation) |
Qhov hnyav | 1.35KG (xws li xim thawv accessories) |
Software Function | |
IPV4 | Txhawb nqa |
IPV 6 | Txhawb nqa |
Smart QOS | Txhawb nqa |
Niam Txiv Tswj | Txhawb nqa |
UPNP | Txhawb nqa |
VPN | Txhawb L2TP VPN tus thov kev pab Txhawb PPTP VPN tus neeg siv khoom |
APN | Txhawb nqa |
DDNS | Txhawb nqa |
DMZ | Txhawb nqa |
Chaw nres nkoj Mapping | Txhawb nqa |
MESH | Txhawb nqa tus kheej MESH |
APP | Txhawb nqa |
TIAB SA 069 | Txhawb nqa |
WiFi encryption | Qhib WEP WPA2-PSK WPA3-SAE WPA/WPA2-PSK WPA2-PSK/WPA3-SAE |
WiFi Band Kev sib sau ua ke | Txhawb nqa |
Lwm yam | 5G kev sib txuas cov ntaub ntawv tso saib Phau Ntawv Qhia zaus ntsuas phoo Traffic Statistics |

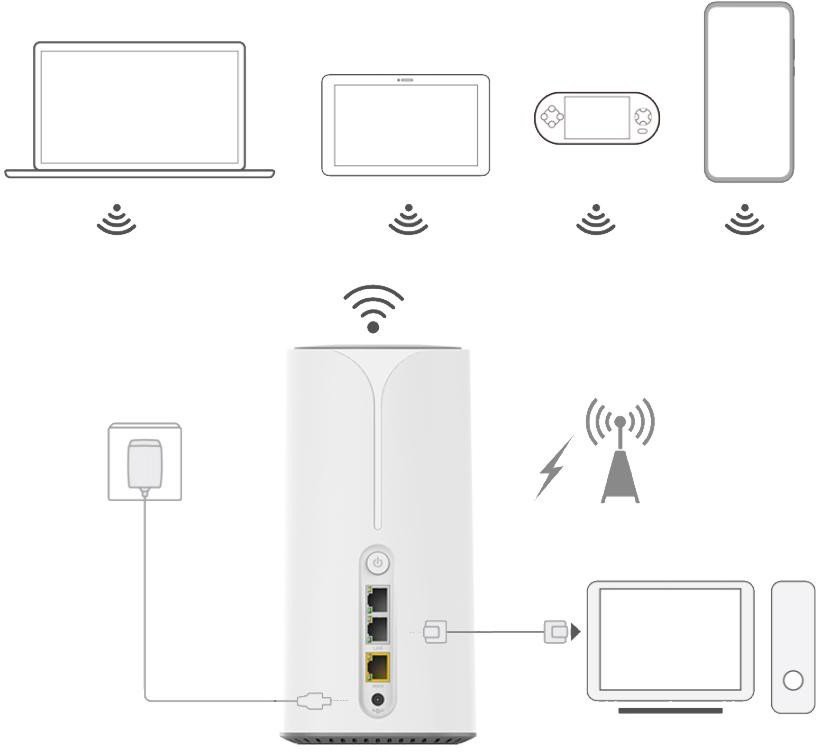

3kev sib txuas network daim duab
1, Nkag mus rau Is Taws Nem los ntawm Mobile Network (5G / LTE)
2, Nkag mus rau Is Taws Nem los ntawm Ethernet Network
Dab tsi hauv pob?
• Ib (1) 5G CPE Router (M01K21)
• Ib (1) 1m Cat6 Ethernet cable
• Ib (1) Fais Fab Adapter
• Phau Ntawv Qhia Pib Ceev
*: nyob rau hauv kev loj hlob / nyob rau hauv kev kawm.
Qhov siab tshaj plaws wireless teeb liab ntau tau los ntawm IEEE tus qauv 802.11 specifications. Cov ntaub ntawv tseeb dhau los thiab cov ntaub ntawv hla qhov deb yuav txawv. Cov xwm txheej hauv lub network thiab ib puag ncig, suav nrog qhov ntim ntawm kev sib txuas hauv network, cov khoom siv hauv tsev thiab kev tsim kho, thiab cov nyiaj siv ua haujlwm hauv network, ua rau cov ntaub ntawv tsawg dua los ntawm tus nqi thiab kev pabcuam wireless.
