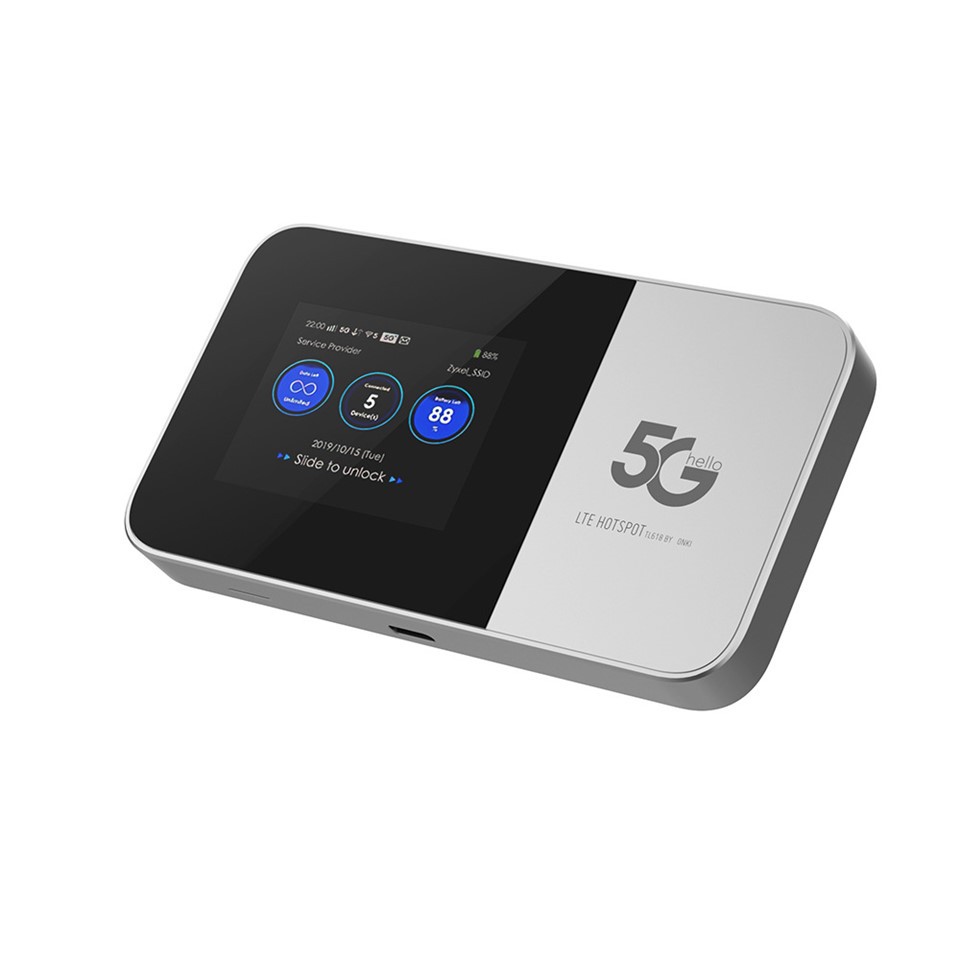

Portable SIM Wi-Fi Ntaus 5G Router

Model: B2-77-EAU

Nta

Hom-C Chaw nres nkoj muaj cov ntaub ntawv muaj nuj nqi, thiab Hom-C rau USB cov ntaub ntawv cable tuaj yeem siv los sib txuas lus ncaj qha nrog USB chaw nres nkoj ntawm PC / laptop (tsis yog RJ45 chaw nres nkoj network)

O1CN01Ur9k111hreHd3CHrC2217297834331-0-cib

Khoom Taw Qhia

• MTK Dimensity 900 6nm MT6877 series baseband platform txais cov txheej txheem thev naus laus zis, uas muaj cov yam ntxwv zoo kawg nkaus ntawm cov cua sov me me thiab kev siv hluav taws xob tsawg. Nyob rau tib lub sijhawm, cov ntawv thov paub tab ua rau nws cov khoom lag luam ruaj khov thiab muaj txiaj ntsig zoo hauv lub network.

• Muaj peev xwm ua tau zoo CPU muaj peev xwm, 2.4 GHz Arm CortexA78 core, rau txog 2 0 GHz Arm@CortexA55 core.

• MTK Dimensity 900 6nm MT6877 series baseband platforms muaj kev sib koom ua ke, nrog rau cov modem thiab daim ntawv thov kev ua haujlwm subsystems, kev sib koom ua ke Bluetooth, FM, WLAN, thiab GPS modules, txhawb ntau qhov sib cuam tshuam thiab txuas cov khoom siv, ua rau kev daws teeb meem tsim tau zoo heev. kev koom ua ke thiab txhawb kev nplua nuj thiab yoog raws kev nthuav dav;

• Ua ke nrog CPU ua tau zoo, DSP, thiab kho vajtse coprocessor, lub zog modem subsystem txhawb 5G NA/NSA, NR Sub6, LTE, thiab WCDMA.

• Cov hneev taw me me, kev siv hluav taws xob tsawg, txo cov peev txheej PCB zoo heev, ua rau cov khoom lag luam compact thiab nqa tau yooj yim;

• Software architecture, txheej txheej, tsim qauv, yooj yim iteration qub txeeg qub teg, thiab tus phooj ywg cov neeg siv khoom tsim interface.

• Lub Android operating system ua rau cov khoom lag luam raug kho raws li qhov sib txawv ntawm daim ntawv thov scenarios.

• Txhawb ntau txoj hauv kev tswj cov cuab yeej, xws li WEB UI, APP, thiab lwm yam.

• Txhawb Fota, TR069 thiab lwm yam kev tswj hwm chaw taws teeb / kev saib xyuas; Super 8-core CPU Ceev dua thiab muaj zog ua haujlwm zog 2 * A78 (2.4GHz) + 6* A55 (2.0GHz) MTK Dimensity flagship series chips yog cov paub tab ntau dua thiab muaj kev ua tau zoo dua ruaj khov qis zog noj, roj teeb ntev lub neej, kev lom zem, tsis txhob txhawj

* txawb lub network tiag tiag, siv lub sijhawm siv hluav taws xob tsawg li 280mA, thiab 5 cov khoom siv txuas rau ntau tshaj 12 teev ntawm roj teeb lub neej. High-speed, low-latency, du thiab ultra-ntshiab video, lub teeb-ceev ua si yam tsis muaj stuttering

* Kev ntsuas lub network tiag tiag txog li 400Mbps-800Mbps/s

* Tej zaum yuav muaj kev sib txawv ntawm kev siv hluav taws xob thiab kev ntsuas sib txawv raws li qhov sib txawv network

Tus nqi theoretical, tus nqi tiag tiag nyob ntawm qhov chaw siv

NR 5G: Downlink / Uplink mus txog 2.77Gbps / 1.25Gbps

LTE: Downlink / Uplink mus txog 1.2Gbps / 150Mbps

WCDMA: Downlink / Uplink mus txog 42.2Mbps / 11.5Mbps

O1CN01xBN2aH1hreJ7YQRKG2217297834331-0-cib

Asia Version Ua Haujlwm Band Rau Malaysia, Singapore, Thaib, Indonesia, Kauslim,

5G:n1/n3/n28/n41/n77/n78

4G:B1/B2/B3/B5/B7/B8/B28/B34/B38/B39/B40/B41

3G:B1/B2/B5/B8

EMEA Version Ua Haujlwm Band Rau Tuam Tshoj, Tebchaws Europe, Middle East thiab Africa, Asia

5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78

4G:B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42*/B43*

3G:B1/B2/B5/B8

LAM Version Ua Haujlwm Band Rau Mexico, Latin America

5G: n2/n5/n28/n66/n78

4G: B2/B4/B5/B7/B8/B28/B42*/B43*/B66

3G: B1/B2/B4/B5/B8

NA Version Ua Haujlwm Band Rau North America

5G: n2/n5/n12/n25/n66/n41/n48*/n71*/n77/n78

4G: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42*/B43*/B48*/B66/B71*

3G: B2/B4/B5

Cov lus piav qhia: [*] Nws tuaj yeem txhawb nqa, tab sis nws xav tau kev debugging ntxiv lossis cuam tshuam rau lwm qhov zaus bands

O1CN01P8fPbf1hreHcLv38g2217297834331-0-cib

5G MIFI Specifications
Cov ntaub ntawv dav dav
Khoom		5G MIFI UAS
Qauv		M2x-77-EAU
Target Market		Tuam Tshoj, EMEA, Asia, cov neeg ua haujlwm & Qhib kev lag luam
Qhov tseem ceeb		MTK 5G 6nm MT6877, ruaj khov network kev ua tau zoo, WiFi6, qis zog comsuption.
Daim ntawv pov thawj		CE / FCC / GCF / PTCRB muaj peev xwm
Specification
OS Version		Android 11
Platform	Chipset	MTK 900,MT6877,6nm 2A78(2.4GHz)+6A55(2.0GHz), GPU:Mali OTR MC4
	Nco	LPDDR4X 2GB RAM + EMMC 32GB ROM
	WiFi	TIAB SA 6635
	BT	Bluetooth 5.1, xaiv tau
LCM	LCD	2.4 '' TFT MIPI (LCD lossis LED)
LCM	TP	Txhawb nqa
LED	LED	Liab, Ntsuab, Xiav
Cellular	raws tu qauv	3GPP Rel.15,5G NR, SA/NSA, Sub 6G/LTE Qeb 18
	Bands	5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 4G:B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43*
	Tshaj tawm	NR:Downlink/Uplink mus txog 2.77Gbps/1.25Gbps LTE:Downlink/Uplink mus txog 1.2Gbps/150Mbps WCDMA:Downlink/Uplink mus txog 42.2Mbps/11.5Mbps
	Kav hlau txais xov	4 * 4 MIMO
WiFi	Bands	2.4G, 5.8G, DBSC (2 * 2), DBDC (1 * 1)
	raws tu qauv	802.11 a/b/g/n/ac/ax
	Tshaj tawm	802.11a: Txog 54Mbps 802.11b: Txog 11Mbps 802.11g: Txog 54Mbps 802.11n: Txog 300Mbps 802.11ac: Txog rau 866Mbps 802.11ax: Txog 802.11ax:
	Kav hlau txais xov	2*2
	Cov neeg siv	16 cov neeg siv
Interface	SIM daim npav	ib SIM card, kub plugging txaus siab
	SIM daim npav	NANO SIM card, eSIM yeem
	USB	TYPE-C(USB2.0)
Khawm	Khawm	1 * Lub zog, 1 * Rov pib dua
Them nqi	HOM-C	5V/2A
Roj teeb	Polymer roj teeb	4400 mAh
Loj	Loj	125 x 70 x 17 mm
Ib puag ncig	Ua haujlwm kub	0 degree -45 degree
	Cia Kub	-20 degree -70 degree
	Cov av noo	5%-95%
annotation: [*] Nws tuaj yeem txhawb nqa, tab sis nws xav tau kev debugging ntxiv lossis cuam tshuam rau lwm qhov zaus.
