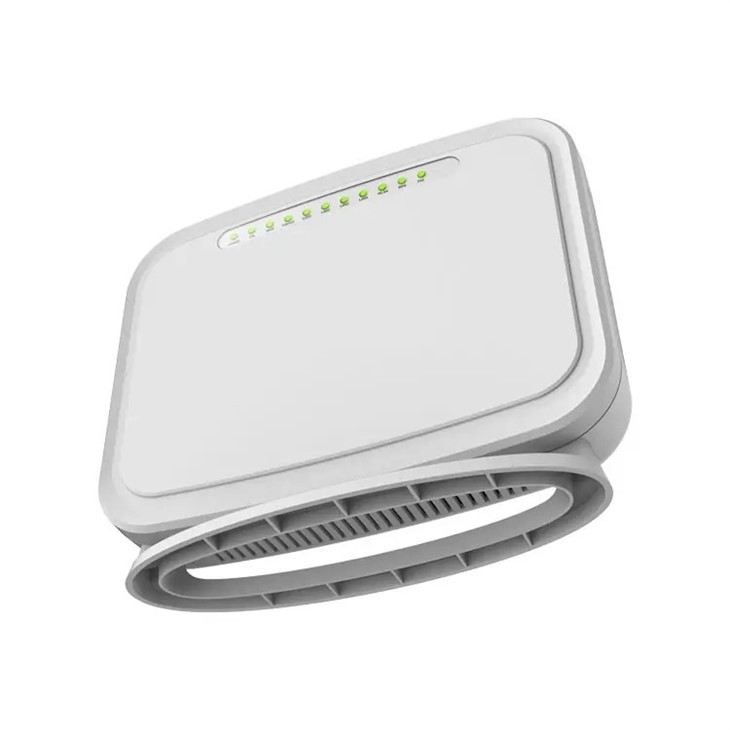

N300 Wireless ADSL Modem Router
Boosted Speeds - Superfast VDSL broadband ceev txog li 100Mbps ua ke nrog 300Mbps Wi-Fi.
Maximized Range - Cov kav hlau txais xov muaj zog muaj peev xwm muab kev pab cuam deb ntawm wireless hauv txhua qhov kev taw qhia.
Xa kev nug
Product Details ofN300 Wireless ADSL Modem Router
ADSL2/2 ntxiv : 4 Ports Wireless 2X2 11n 300Mbps
Qauv: R06G
Txheej txheem cej luam
R06 G yog lub zog ADSL2 / 2 ntxiv rau wireless ADSL Modem Router uas muab s thiab ruaj ntseg Internet rau cov neeg siv. Nws CPU khiav ntawm qhov ceev txog li 450Mhz los xyuas kom meej qhov ua tau zoo ntawm CPE. Nws muab txog 1Mbps ntws ntws thiab 24Mbps nqes hav, uas ua raws li ITU. ADSL2 ntxiv rau Standards. Nws txhawb 802.11b/g/n wireless qauv, uas yog mus txog 300Mbps wireless ceev, kom txaus siab rau feem ntau siv.
Kev teeb tsa ntawm CPE yog hloov tau thiab yooj yim. Peb muab Wizard rau kev teeb tsa yooj yim lossis Kev teeb tsa tsis tu ncua rau kev teeb tsa ua haujlwm puv. Ob tus neeg siv tshiab thiab cov neeg siv siab heev tuaj yeem tau txais yam lawv xav tau.
Hardware Specification
|
Chipset |
RTL 8676S-VA2 ntxiv rau RTL8271B-VS ntxiv rau RTL8192ER-CG |
|
Flash |
8 MB (yuav ua tau 32M) |
|
RAM |
16MB (yuav ua tau max 64M) |
|
WAN |
DSL RJ11 chaw nres nkoj |
|
LAN |
4 Fast Ethernet ports (10/100Mbps) |
|
Wireless |
802.11 b/g/n, mus txog 300Mbps; sab nraud lossis sab hauv kav hlau txais xov |
|
LED |
Fais fab DSL Internet LAN4 LAN3 LAN2 LAN1 WLAN (Lub hwj chim thiab Internet yog ob xim) |
|
Lub zog nkag |
12V 0.5A, CE |
|
Khoom siv |

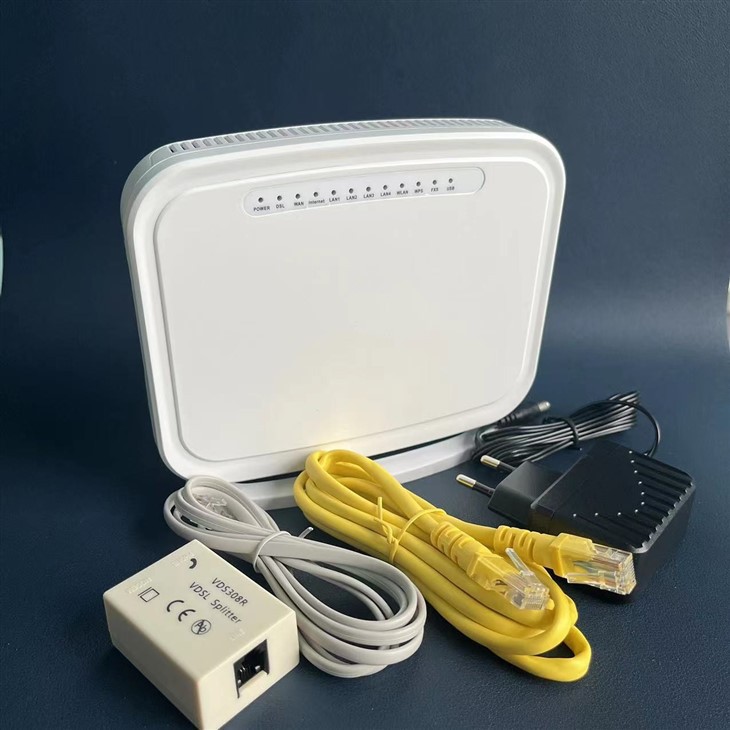

RJ45 cable 1.5M X1; RJ11 cable 1.2M X1; ADSL Splitter X1; |
|
Khoom plig lub thawv |
Brown tiaj, nrog sab hauv calipers |
|
Lwm tus |
Ib Reset khawm, Ib lub khawm WiFi / WPS, Ntaus Ntawv Cim nrog MAC / SN |
|
Lub tsev: xim dub |
|
|
Qhov ntev |
89mm x 82mm x1.2mm (tsuas yog PCBA) (2 * Kav hlau txais xov) |
|
Kev teeb tsa |
Desktop mounting |
|
Kev siv fais fab |
<5.5W |
|
Ib puag ncig |
Kub: - 0 mus rau 50 degree (Standard Operating) - -20 mus rau 70 degree (Tsis ua hauj lwm) Humidity: - 10 feem pua rau 90 feem pua (Non-condensing, Standard Operating) {{8} } feem pua rau 95 feem pua (Tsis yog-condensing, tsis ua haujlwm) |
Firmware Specification
|
DSL Cov Qauv |
|
|
1 |
ANSI T1.413 2 |
|
2 |
ITU-T G992.1 nrog Annex A (G.dmt) |
|
3 |
ITU-T G.992.2 Annex A (G.lite). |
|
4 |
ITU-T G.992.3 Annex A, L, M (ADSL2) |
|
5 |
ITU-T G.992.5 Annex A, M (ADSL2 ntxiv) |
|
6 |
ITU-T G.997.1 |
|
7 |
ETSI ETR-328 |
|
Raws tu qauv & nta txhawb |
|
|
1 |
RFC 2684 IP Kev Sib Txuas & RFC 2684 IP Routing |
|
2 |
RFC 2516, PPPoE (Point dhau Ethernet) dhau ATM |
|
3 |
RFC 2364 PPPoA |
|
4 |
Txhawb nqa txog li 8 PVCs |
|
5 |
QOS raws li PVC |
|
6 |
Routing: RIP v1, RIP v2 |
|
7 |
Txhawb Static Routing |
|
8 |
NAT & PAT (RFC 1631) |
|
9 |
DMZ kev txhawb nqa |
|
10 |
NAT nrog Application Layer Gateway |
|
11 |
IP Routing: TCP, UDP, ICMP, ARP |
|
12 |
DHCP Client/Server/Relay |
|
13 |
IP multicasting IGMP v1/v2 |
|
14 |
Hla dhau/qhib/redirection thiab chaw nres nkoj mapping |
|
15 |
QoS mechanism txhawb rau kev kos duab ntawm PVC nrog cov chav kawm sib txawv |
|
16 |
HTTP (web based) rau firmware upgrade & configuration |
|
17 |
IP lim |
|
18 |
IGMP Snooping |
|
19 |
IEEE 802.1D Transparent Bridging |
|
20 |
DNS relay |
|
Firewall Nta |
|
|
1 |
Qhov chaw IP chaw nyob, Qhov chaw IP chaw nyob, Chaw nres nkoj qhov chaw, Chaw nyob MAC chaw nyob, Chaw nres nkoj chaw nyob |
|
2 |
Kev tshuaj xyuas pob ntawv tseem ceeb |
|
3 |
Filtering ntawm Daim Ntawv Thov |
|
4 |
Filtering ntawm qhov chaw nres nkoj |
|
Kev them nyiaj yug virtual private network |
|
|
1 |
Standard (IPSec, L2TP, PPTP) hla dhau |
|
2 |
Kev sib raug zoo nrog lwm tus IPSec VPN rooj vag |
|
3 |
Txhawb ntau tus ID nkag mus ib txhij ntawm FTP/www/Telnet |
|
Kev kuaj mob |
|
|
1 |
txhawb kev kuaj mob ua haujlwm |
|
Management nta & functionality |
|
|
1 |
TFTP/FTP upgrade |
|
2 |
Txhawb TR069 |
|
3 |
Telnet chaw taws teeb tswj kev pab cuam |
|
4 |
txhawb Web-based configuration |
|
5 |
Kev them nyiaj yug rau backup & restore configuration rau / los ntawm PC |
|
6 |
Txhawb TR-64 rau kev tswj LAN |
|
7 |
Txhawb DHCP server rau IP tswj |
|
Kev ua tau zoo ntawm kev pabcuam |
|
|
1 |
Chaw nres nkoj raws thiab IP raws QoS |
|
2 |
802.1 ntsis |
|
ATM Tus cwj pwm, kev ua haujlwm thiab kev tswj hwm xwm txheej |
|
|
1 |
ATM Cell tshaj AAL5 |
|
2 |
OAM F4/F5 rov qab |
|
3 |
Tsheb thauj mus los txhawb UBR, CBR, VBR-nrt thiab VBR-r |
|
4 |
VPI range (0-255) thiab VCI range (1-65535) |
|
General Specification & Kev ua haujlwm yuav tsum tau ua |
|
|
1 |
System Log |
|
2 |
IPv4 / IPv6 Dual Stack |
|
Muaj feem xyuam rau WiFi Modem |
|
|
1 |
Wireless Standard thiab feature - 802.11g/802.11b/802.11n |
|
2 |
64/128 ntsis WEP txhawb nqa |
|
3 |
MAC koom haum tswj |
|
4 |
Txhawb ntau SSIDs |
|
5 |
Kev them nyiaj yug rau WEP, WPA, WPA2, WPA2 Enterprise (802.1X) |
Nrhiav rau ib tug txhim khu kev qha thiab yooj yim-rau-siv VDSL router nrog advanced nta xws li VoIP, Firewall, QoS, thiab VPN? Saib tsis pub dhau peb 300Mbps VDSL router nrog 4 LAN chaw nres nkoj thiab 1 WAN chaw nres nkoj. Nrog nws cov kev ua tau zoo thiab cov teeb liab ruaj khov, lub router no zoo meej rau kev siv hauv tsev lossis chaw ua haujlwm me. Thiab ua tsaug rau nws cov yam ntxwv siab heev, koj tuaj yeem txaus siab rau kev nyab xeeb thiab txhim khu kev qha hauv Is Taws Nem yam tsis muaj kev txhawj xeeb txog cyber hem lossis network congestion. Txawm hais tias koj tab tom nrhiav kwj HD video, xauj lub vev xaib, lossis ua haujlwm hauv tsev, lub router no muaj txhua yam koj xav tau kom nyob twj ywm thiab ua haujlwm tau zoo. Thiab nrog nws yooj yim-rau-nruab tsim thiab cov neeg siv-phooj ywg interface, pib yog ib qho yooj yim. Yog li vim li cas tos? Order koj 300Mbps VDSL router hnub no thiab paub qhov kawg ntawm kev sib txuas hauv Is Taws Nem, kev ruaj ntseg, thiab kev ua haujlwm. Nrog nws cov yam ntxwv muaj zog thiab txhim khu kev qha, koj yuav xav li cas koj puas tau tswj tsis tau nws!
Shenzhen Qishun Technology Co., Ltd
Shenzhen Qishun Technology Co., Ltd yog lub tuam txhab high-tech. Peb cov khoom tseem ceeb suav nrog 5G / 4G Modem, 5G / 4G Router, Wireless AP, wireless ADSL, wireless LAN adapters, khoom siv hluav taws xob, thiab lwm yam khoom siv. Peb txais tos OEMs los ntawm thoob plaws lub ntiaj teb. foom koob hmoov rau lub hauv paus ntsiab lus ntawm "Innovation, High-quality, High-efficiency". Ntxiv mus, peb muaj pab neeg ua haujlwm zoo tshaj plaws. Corporation Culture Peb Lub Tuam Txhab Lub Zeem Muag: Nyob rau hauv lub neej yav tom ntej, los ua tus neeg muag khoom sab saum toj ntawm Cov Khoom Siv Hluav Taws Xob hauv Suav teb thiab thoob ntiaj teb paub zoo ib yam. Peb Lub Tuam Txhab Lub Hom Phiaj: Txhawm rau muab cov khoom siv hluav taws xob ntau thiab cov kev pabcuam rau cov neeg siv khoom thoob ntiaj teb. Peb Cov Ntsiab Cai Tseem Ceeb Tus nqi peev xwm: Kev hwm thiab kev ntseeg siab rau txhua tus neeg ua haujlwm, kev lees paub ntawm lawv txoj kev koom tes. Peb tsim kom muaj ib puag ncig zoo rau kev txhim kho cov neeg ua haujlwm, txhawb nqa kev tshaj lij thiab kev ua tau zoo, thiab tsim kom muaj kev sib raug zoo nrog cov zej zog uas cuam tshuam txog kev sib koom siab thiab cov txiaj ntsig.
1.10 xyoo ' Hoobkas ntawm 5G / 4G / 3G router, CPE, usb dongle. 2. Peb tau tsim 3000-5000 routers txhua hnub, Tshuab automated raws sijhawm. Tag nrho cov khoom warranty 13 lub hlis. 3. Peb muaj cov kws tshaj lij thiab R & D pab neeg. 4. Peb tuaj yeem tsim thiab kho cov khoom raws li qhov yuav tsum tau ua, thiab peb tuaj yeem lav qhov zoo thiab tus nqi zoo tshaj. 5. Peb lub tuam txhab tau tsim kev koom tes nrog nubia, Tuam Tshoj txawb, Tuam Tshoj Unicom, MTN thiab lwm yam.
